Features:
- Combination countersink & thread mill.
- Axial coolant fed channel for enhanced chip removal rates
- This tool is for a specific pitch with corrected thread profile
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF322101.0302 |
| Thread Size | M 12x1.25 |
| Thread Diameter Size | M 12 |
| Overall Length (mm) | 90.00mm |
| Flute Length (mm) | 18.20mm |
| Length Group | 1.5xD |
| Number of Flutes | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Thread Standard | MF |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | Carbide |
| Coating | Bright |

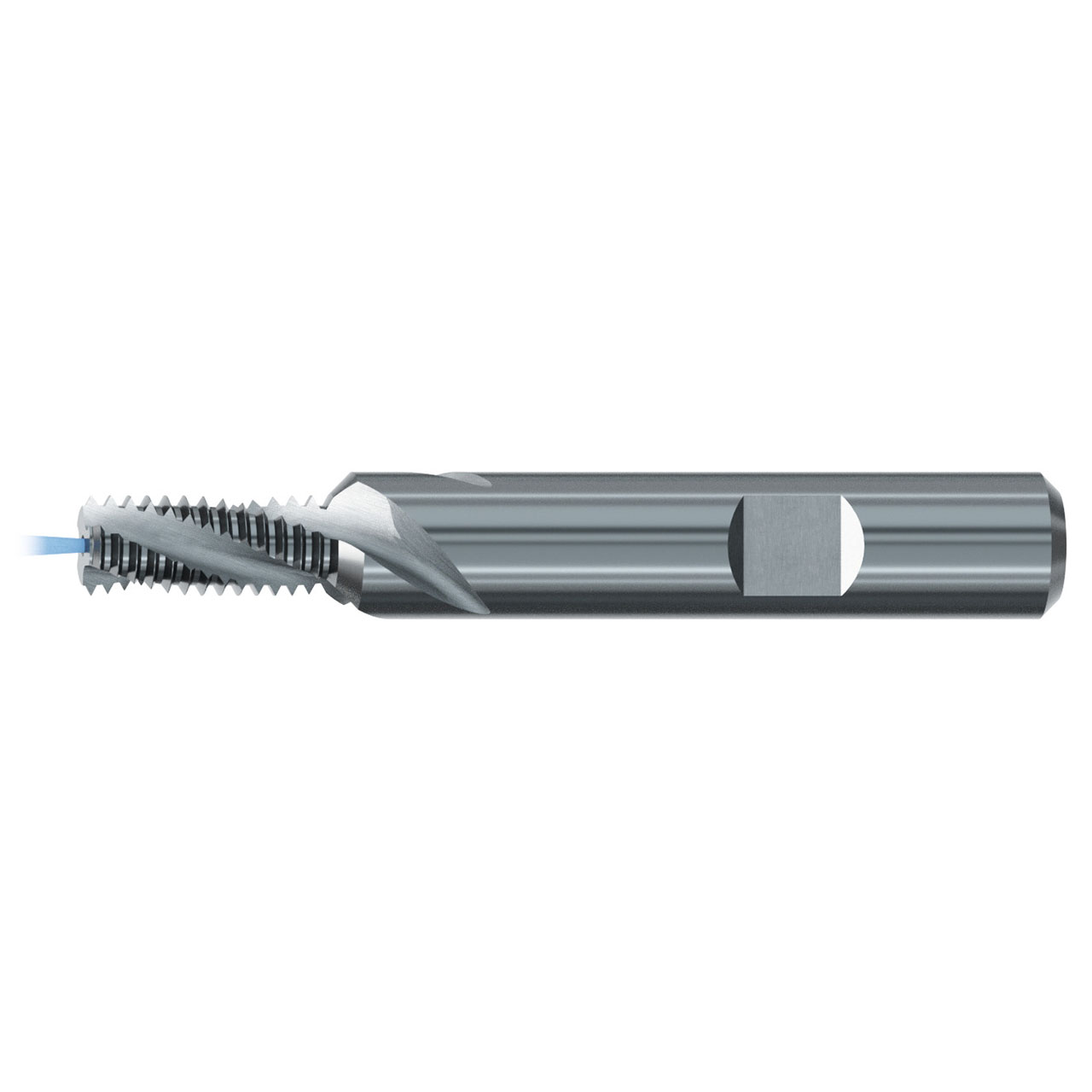

| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 12x1.25
Thread Diameter Size:
M 12
Overall Length (Inch):
3-44/81"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Number of Flutes:
4
Coating:
Bright
Flute Helix Angle (Degree):
30 Degree
interval quantity:
1
