Features:

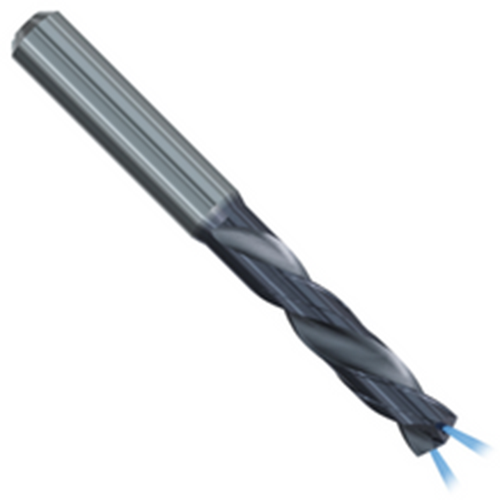

- High penetration rate carbide drill. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location.
Product Specifications
| EDP Number | TA209744.0480 |
| Decimal Size (Inch) | 0.1890" |
| End Style (Inch) | 0.189" |
| Point Angle | 140 Degree |
| Size | 4.8 |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | Multi Drill |
| Length Group | 3 x D |
| Coolant Fed | Yes |
| Coating | TIALN–T63 |
| Material | Carbide |
| Flutes | 2 |
| Flute / Helix Angle | 30 Degree |
| Shank (mm) | 6mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 66mm |
| Flute Length (mm) | 28mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1890"
Cutting Diameter (mm):
4.80mm
Shank Diameter (mm):
6.00mm
Drill Bit Size (Wire):
#12
Cutting Edge Material:
Carbide
Flute Length (mm):
28.00mm
Point Angle:
140 Degree
Number of Flutes:
2
Flute Direction:
Right Hand
Finish/Coating:
TiAlN–T63
Tool Type:
MultiDRILL
Overall Length (mm):
66.00mm
interval quantity:
1
