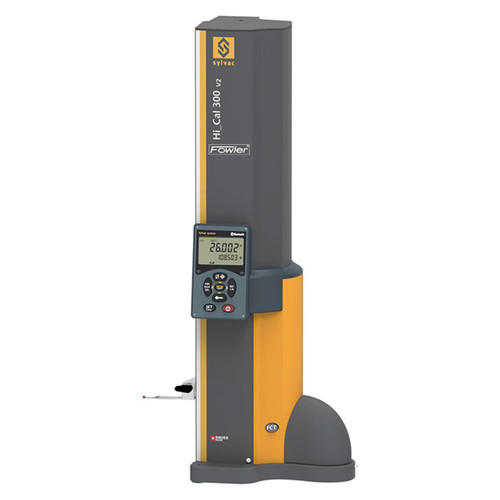

Quick, easy computer recorded measurements. Extra low measuring force, from 0.2N. Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability. Excellent repeatability thanks to the motorized carriage. High reliability. Bluetooth, USB and RS232 data outputs. Battery life: 40 hours rechargeable during operation. Touch sensitive probe speed for easy operation. Base with small footprint. Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificate
Product Specifications
| Range | 6"/150mm |
| Application Range | 6.1"/0-155mm |
| Maximum Error(μm) | 2.5+L/175 |
| Repeatability | 2μm |
| Resolution | 0.00005"/0.001mm |
| Velocity(mm/sec.) | 50/100 |
| Measuring Force | 0.2-0.3Newtons |
| Self-Contained Use | Approximately 40 hours |
| Overall Height | 14.92"/379mm |
| Weight | 8.6lb/3.9kg |
