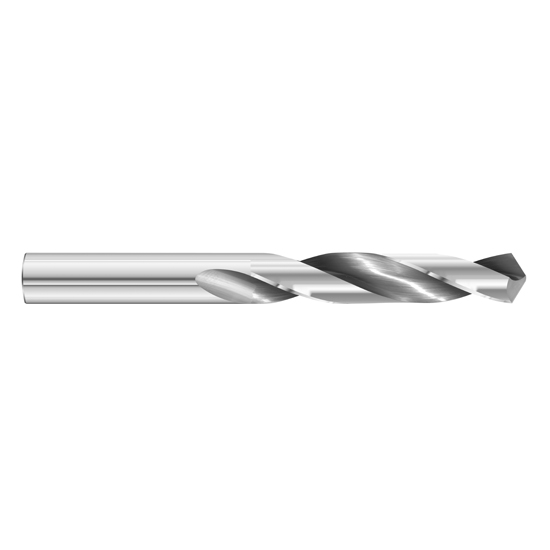

Fullerton Tool 15126 | 19/64" Solid Carbide Uncoated Jobbers Length Drill

$49.93 $48.93
(You save $1.00)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Inch):
19/64"
Drill Bit Size (Decimal Inch):
0.2969"
Drill Bit Size (mm):
7.54mm
Drill Point Angle:
118 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
interval quantity:
1
SKU:
10001322
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 15126 | 19/64" Solid Carbide Uncoated Jobbers Length Drill

Related Products

Features

  • The 1510 4-Facet Point is a 2-flute, general purpose drill designed for use in titanium, hardened steels, stainless steels, steels, cast iron, graphite, brass & copper, high si aluminum, low si aluminum, composites, and wood
  • This drill is the preferred design for screw machine and Swiss lathe applications
  • The 1510 4-Facet Point is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2969"
Cutting Diameter (mm) 7.54mm
Cutting Diameter (Inch) 19/64"
Cutting Flute Length (Decimal Inch) 2.3750"
Cutting Flute Length (mm) 60.33mm
Cutting Flute Length (Inch) 2-3/8"
Shank Diameter (Decimal Inch) 0.2969"
Shank Diameter (mm) 7.54mm
Shank Diameter (Inch) 19/64"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 25
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Four Facet
End Type Character Designation FF
Point Include Angle 118
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
