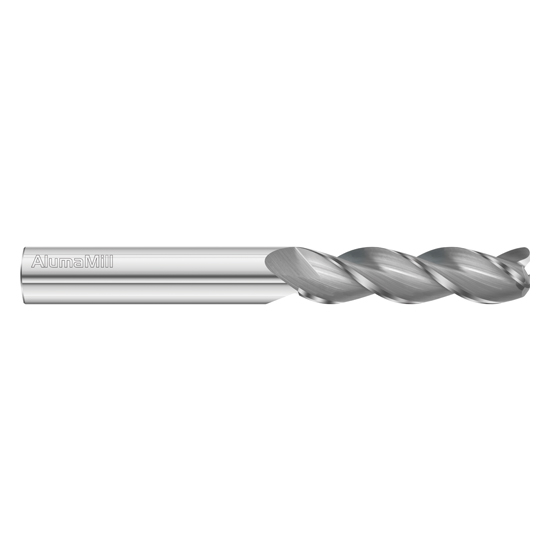

Fullerton Tool 27427 | 7/16" Diameter x 7/16" Shank x 2" LOC x 4" OAL 3 Flute Uncoated Solid Carbide Radius End Mill

$115.75 $72.92
(You save $42.83)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
7/16"
Number of Flutes:
3
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2"
Length of Cut (mm):
50.80mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
25002048
UPC:
Weight:
0.16 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 27427 | 7/16" Diameter x 7/16" Shank x 2" LOC x 4" OAL 3 Flute Uncoated Solid Carbide Radius End Mill

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.4375"
Cutting Diameter (mm) 11.11mm
Cutting Diameter (Inch) 7/16"
Cutting Flute Length (Decimal Inch) 2.0000"
Cutting Flute Length (mm) 50.80mm
Cutting Flute Length (Inch) 2"
Shank Diameter (Decimal Inch) 0.4375"
Shank Diameter (mm) 11.11mm
Shank Diameter (Inch) 7/16"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0150"
Radius (mm) 0.38mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
