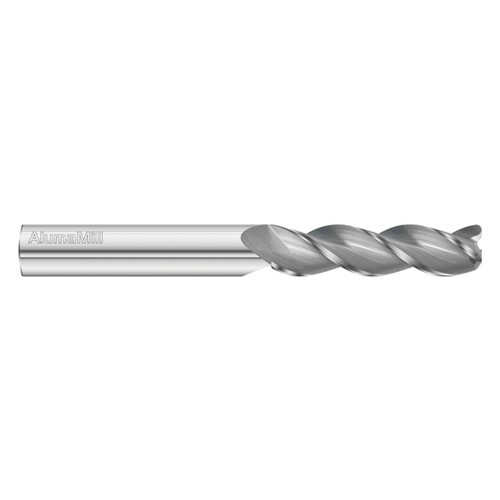

Fullerton Tool 27571 | 1/2" Diameter x 1/2" Shank x 3-1/4" LOC x 6" OAL 3 Flute Uncoated Solid Carbide Radius End Mill

$189.19 $119.19
(You save $70.00)

Out of stock

Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
3
Length of Cut (Inch):
3-1/4"
Length of Cut (Decimal Inch):
3.2500"
Length of Cut (mm):
82.55mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6"
Overall Length (mm):
152.40mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
SKU:
25001934
UPC:
Weight:
0.35 LBS
Shipping:
Free Shipping

Features

  • The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
  • It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
  • Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
  • The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 3.2500"
Cutting Flute Length (mm) 82.55mm
Cutting Flute Length (Inch) 3-1/4"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 6.0000"
Overall Length (mm) 152.40mm
Overall Length (Inch) 6"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 37.5
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.1200"
Radius (mm) 3.05mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
