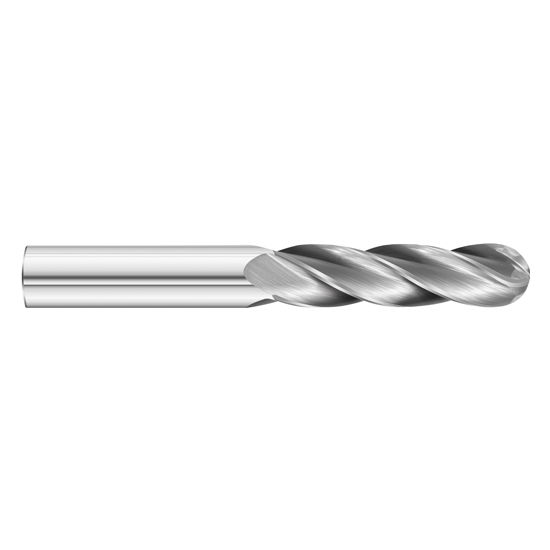

Fullerton Tool 32557 | 1/4" Diameter x 1/4" Shank x 1-1/2" LOC x 6" OAL 4 Flute Uncoated Solid Carbide Ball End Mill

$67.17 $42.32
(You save $24.85)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/4"
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6"
Overall Length (mm):
152.40mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25000970
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 32557 | 1/4" Diameter x 1/4" Shank x 1-1/2" LOC x 6" OAL 4 Flute Uncoated Solid Carbide Ball End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.2500"
Cutting Diameter (mm) 6.35mm
Cutting Diameter (Inch) 1/4"
Cutting Flute Length (Decimal Inch) 1.5000"
Cutting Flute Length (mm) 38.10mm
Cutting Flute Length (Inch) 1-1/2"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (mm) 6.35mm
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 6.0000"
Overall Length (mm) 152.40mm
Overall Length (Inch) 6"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
