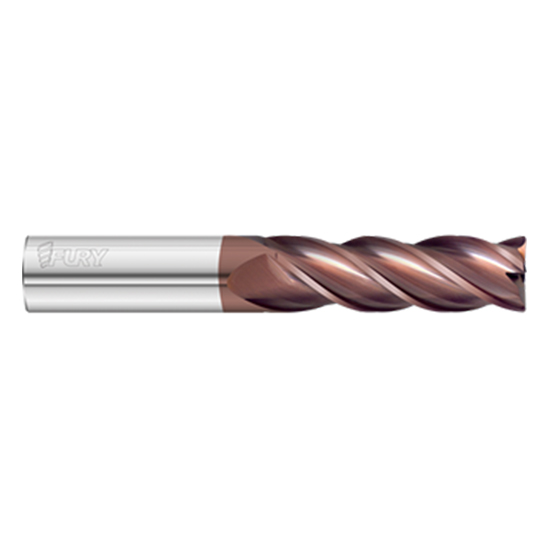

Fullerton Tool 35078 | 1/4" Diameter x 1/4" Shank x 1" LOC x 3" OAL 4 Flute FC20 Solid Carbide Square End Mill

$31.52 $30.89
(You save $0.63)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/4"
Number of Flutes:
4
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Shank Diameter (inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3500 Fury
Ships:
From Partner Facility
interval quantity:
1
SKU:
25004129
UPC:
Weight:
0.20 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 35078 | 1/4" Diameter x 1/4" Shank x 1" LOC x 3" OAL 4 Flute FC20 Solid Carbide Square End Mill

Features

  • The 3500 Fury is a 4-flute, high performance end mill that excels in stainless steels, super alloys, and titanium
  • It performs exceptionally in high-speed machining and full diameter milling as well as produces excellent surface finishes
  • Its tool versatility results in increased productivity, less tool changes, and longer tool life
  • The 3500 Fury is stocked with FC-20 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.2500"
Cutting Diameter (mm) 6.35mm
Cutting Diameter (Inch) 1/4"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (mm) 6.35mm
Shank Diameter (Inch) 1/4"
Overall Length (Decimal Inch) 3.0000"
Overall Length (mm) 76.20mm
Overall Length (Inch) 3"
Coating/Finish FC20
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
