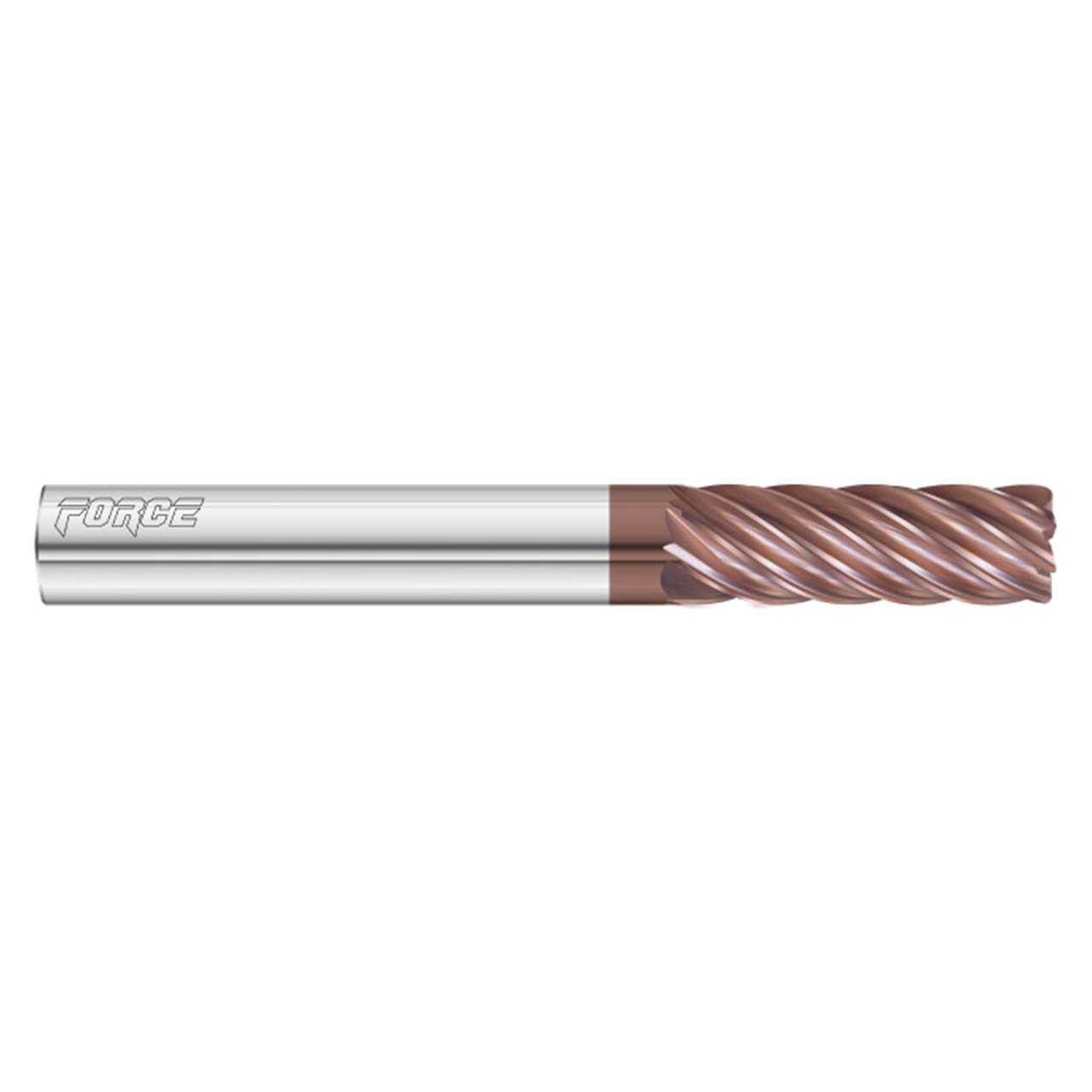

It produces excellent surface finishes and chip control, and its optimized geometry allows for high feed rates in stainless steels, super alloys, and titanium. The 3600 Force is a high-performance end mill with 7 flutes (based on diameter) and is stocked with FC-20 coating, which provides high hardness, elasticity, oxidation, and low friction.
Product Specifications
| Manufacturer Part Number | 36289 |
| Cutting Diameter (Decimal Inch) | 0.472" |
| Cutting Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.472" |
| Shank Diameter (mm) | 12.00mm |
| Cutting Flute Length (Decimal Inch) | 1.417" |
| Cutting Flute Length (mm) | 36.00mm |
| Radius (Decimal Inch) | 0.098" |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Number of Flutes | 7 |
| Length | Extra-Long |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Corner Radius |
| Coating | FC20 |
| Series | 3600 |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Cutting Diameter (Decimal Inch):
0.4720"
Cutting Diameter (mm):
12.00mm
Shank Diameter (Decimal Inch):
0.4720"
Shank Diameter (mm):
12.00mm
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Number of Flutes:
7
Cutting Direction:
Right Hand
End Type:
Corner Radius
Finish/Coating:
FC20
