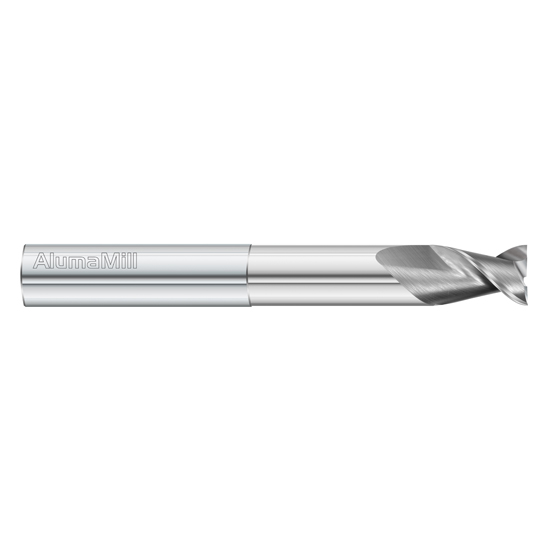

Fullerton Tool 38198 | 1/2" Diameter x 1/2" Shank x 3/4" LOC x 4" OAL 2 Flute Uncoated Solid Carbide Square End Mill

$125.95 $79.35
(You save $46.60)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1/2"
Number of Flutes:
2
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Shank Diameter (inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3825 AlumaMill
Ships:
From Partner Facility
SKU:
25003758
UPC:
Weight:
0.60 LBS
Shipping:
Free Shipping

Features

  • The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
  • Its high polish and unique cylindrical margin design produces superior wall finishes
  • The 3825 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.5000"
Cutting Diameter (mm) 12.70mm
Cutting Diameter (Inch) 1/2"
Cutting Flute Length (Decimal Inch) 0.7500"
Cutting Flute Length (mm) 19.05mm
Cutting Flute Length (Inch) 3/4"
Shank Diameter (Decimal Inch) 0.5000"
Shank Diameter (mm) 12.70mm
Shank Diameter (Inch) 1/2"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 45
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Neck Diameter (Decimal Inch) 0.4800"
Neck Diameter (mm) 12.19mm
Reach (Decimal Inch) 2.2500"
Reach (mm) 57.15mm
Reach (Inch) 2-1/4"
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Long Reach
Length Designator LR
