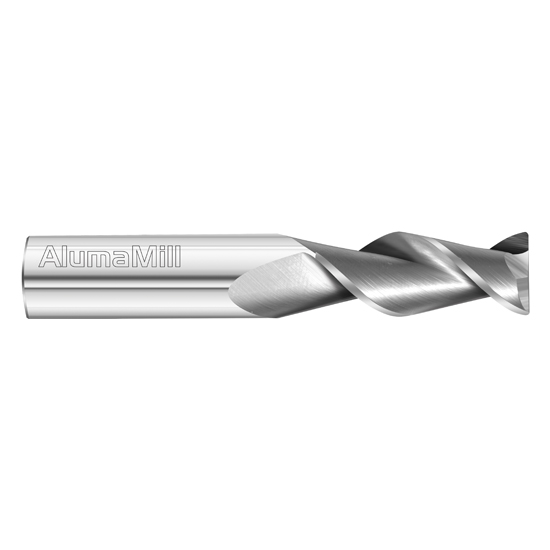

Fullerton Tool 38616 | 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 3-1/2" OAL 2 Flute Uncoated Solid Carbide Radius End Mill

$170.34 $107.31
(You save $63.03)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Number of Flutes:
2
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.90mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3825 AlumaMill
Ships:
From Partner Facility
SKU:
25001920
UPC:
Weight:
0.52 LBS
Shipping:
Free Shipping
Fullerton Tool 38616 | 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 3-1/2" OAL 2 Flute Uncoated Solid Carbide Radius End Mill

Features

  • The 3825 AlumaMill is a 2-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
  • Its high polish and unique cylindrical margin design produces superior wall finishes
  • The 3825 AlumaMill is stocked uncoated and with FC-19 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.6250"
Cutting Diameter (mm) 15.88mm
Cutting Diameter (Inch) 5/8"
Cutting Flute Length (Decimal Inch) 1.6250"
Cutting Flute Length (mm) 41.28mm
Cutting Flute Length (Inch) 1-5/8"
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (mm) 15.88mm
Shank Diameter (Inch) 5/8"
Overall Length (Decimal Inch) 3.5000"
Overall Length (mm) 88.90mm
Overall Length (Inch) 3-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 45
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0200"
Radius (mm) 0.51mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
