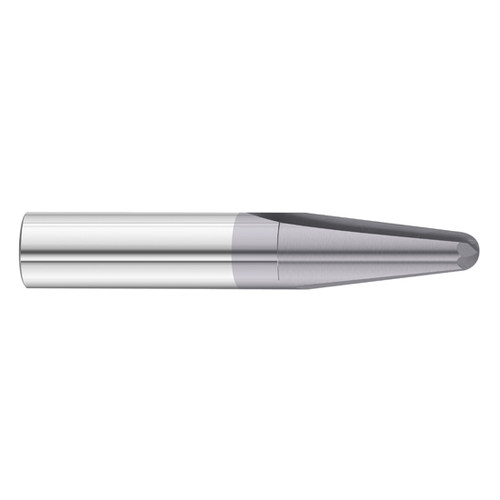

Fullerton Tool 38776 | 5/16" Diameter x 5/16" Shank x 5/8" LOC x 2-1/2" OAL 2 Flute TiAlN Solid Carbide Ball End Mill

$84.39 $53.17
(You save $31.22)

Out of stock

Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/16"
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001676
UPC:
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 38776 | 5/16" Diameter x 5/16" Shank x 5/8" LOC x 2-1/2" OAL 2 Flute TiAlN Solid Carbide Ball End Mill

Features

  • The 3261 Tapered Mill is a 2-flute, general purpose end mill designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, high si aluminum, and low si aluminum
  • The 3261 Tapered Mill is stocked uncoated and with TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3125"
Cutting Diameter (mm) 7.94mm
Cutting Diameter (Inch) 5/16"
Cutting Flute Length (Decimal Inch) 0.6250"
Cutting Flute Length (mm) 15.88mm
Cutting Flute Length (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (mm) 7.94mm
Shank Diameter (Inch) 5/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish TIALN
Metric/Inch Inch
Center Line Taper 7
Nose Diameter (Decimal Inch) 0.1562"
Nose Diameter (mm) 3.97mm
Nose Diameter (Inch) 5/32"
Nose Radius (Decimal Inch) 0.0781"
Nose Radius (mm) 1.98mm
Number of Flutes 2
Flute Spiral Direction Straight
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
Point Include Angle 14
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
