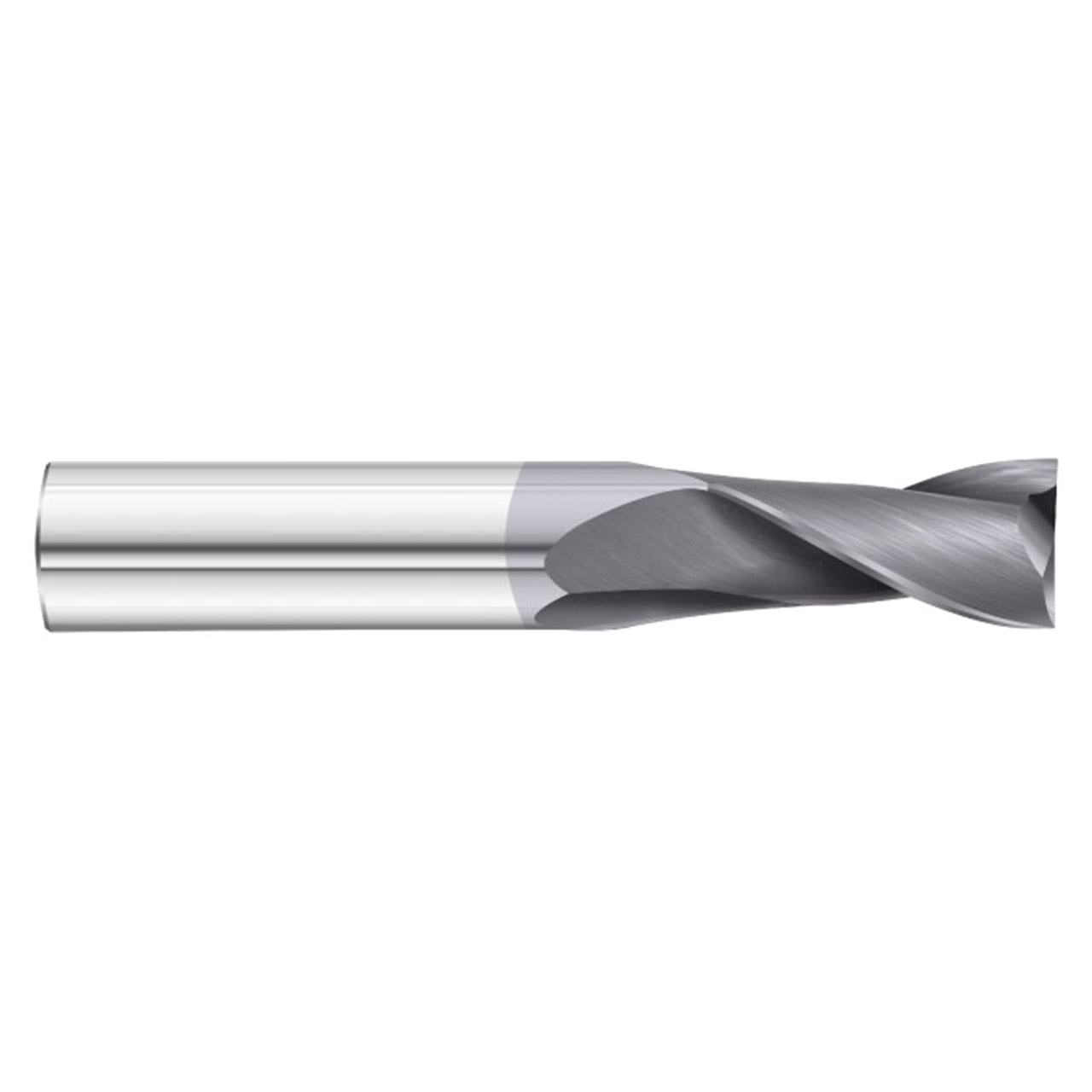

It's designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum, it offers a variety of configurations, and is available with single-end and double-end designs. The 3215 2-Flute General Purpose end mill has 2-flutes and is stocked uncoated and with TiAlN coatings.
Product Specifications
| Manufacturer Part Number | 92244 |
| Cutting Diameter (Decimal Inch) | 0.315" |
| Cutting Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Cutting Flute Length (Decimal Inch) | 0.866" |
| Cutting Flute Length (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 2.520" |
| Overall Length (mm) | 64.00mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30.00 Degree |
| Length | Standard |
| Flute Spiral | Right Hand |
| Cutting Direction | Right Hand |
| End Type | Square |
| Coating | TiAlN |
| Series | 3215 |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Cutting Diameter (Decimal Inch):
0.3150"
Cutting Diameter (mm):
8.00mm
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Overall Length (Decimal Inch):
2.5200"
Overall Length (mm):
64.00mm
Number of Flutes:
2
Helix Angle:
30.00 Degree
Cutting Direction:
Right Hand
End Type:
Square
Finish/Coating:
TiAlN
interval quantity:
1
