Features

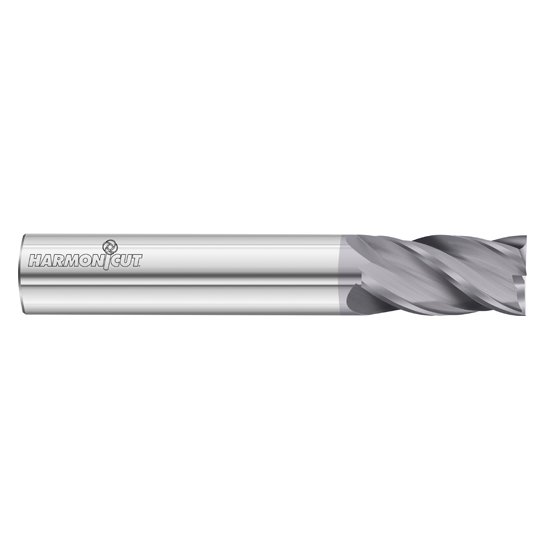

- The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
- It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of harmonics
- The 3400 Harmon-i-Cut allows the capability to rough and finish with one tool and is stocked with FC-18 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6299" |
| Cutting Diameter (mm) | 16.00mm |
| Cutting Flute Length (Decimal Inch) | 1.4961" |
| Cutting Flute Length (mm) | 38.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Coating/Finish | FC18 |
| Metric/Inch | Metric |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | Variable |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Square |
| End Type Character Designation | S |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (mm):
16mm
Number of Flutes:
4
Length of Cut (Decimal Inch):
1.4961"
Length of Cut (mm):
38mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16mm
Overall Length (mm):
100mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3400 Harmon-i-Cut
