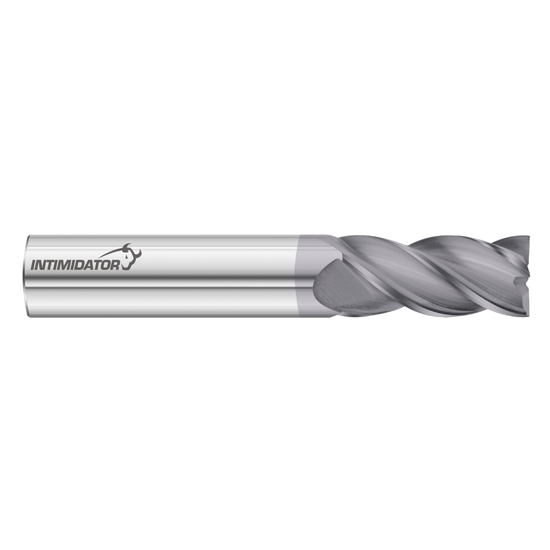

Fullerton Tool 93806 | 12mm Diameter x 12mm Shank x 27mm LOC x 76mm OAL 4 Flute FC18 Solid Carbide Square End Mill

$108.28 $68.22
(You save $40.06)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
12.00mm
Number of Flutes:
4
Length of Cut (Decimal Inch):
1.0630"
Length of Cut (mm):
27mm
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Overall Length (mm):
76mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3000 Intimidator
Ships:
From Partner Facility
SKU:
25004230
UPC:
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Features

  • The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
  • The 3000 Intimidator is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.4724"
Cutting Diameter (mm) 12.00mm
Cutting Flute Length (Decimal Inch) 1.0630"
Cutting Flute Length (mm) 27.00mm
Shank Diameter (Decimal Inch) 0.4724"
Shank Diameter (mm) 12.00mm
Overall Length (Decimal Inch) 2.9921"
Overall Length (mm) 76.00mm
Coating/Finish FC18
Metric/Inch Metric
Number of Flutes 4
Helix Angle (Degrees) 38
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat Yes
Length Standard
Length Designator SD
