Features
- Quick-change - push back on the holder sleeve and the adapter with tool is removable
- Press on the end of the adapter nose and the tool is removable - all in a few seconds
- Smooth stroke - even under full torque load, the tension-compression stroke is full and free
- Interchangeability - this adapters and holders are interchangeable with Universal-Bilz quick change holders and adapters
Product Specifications

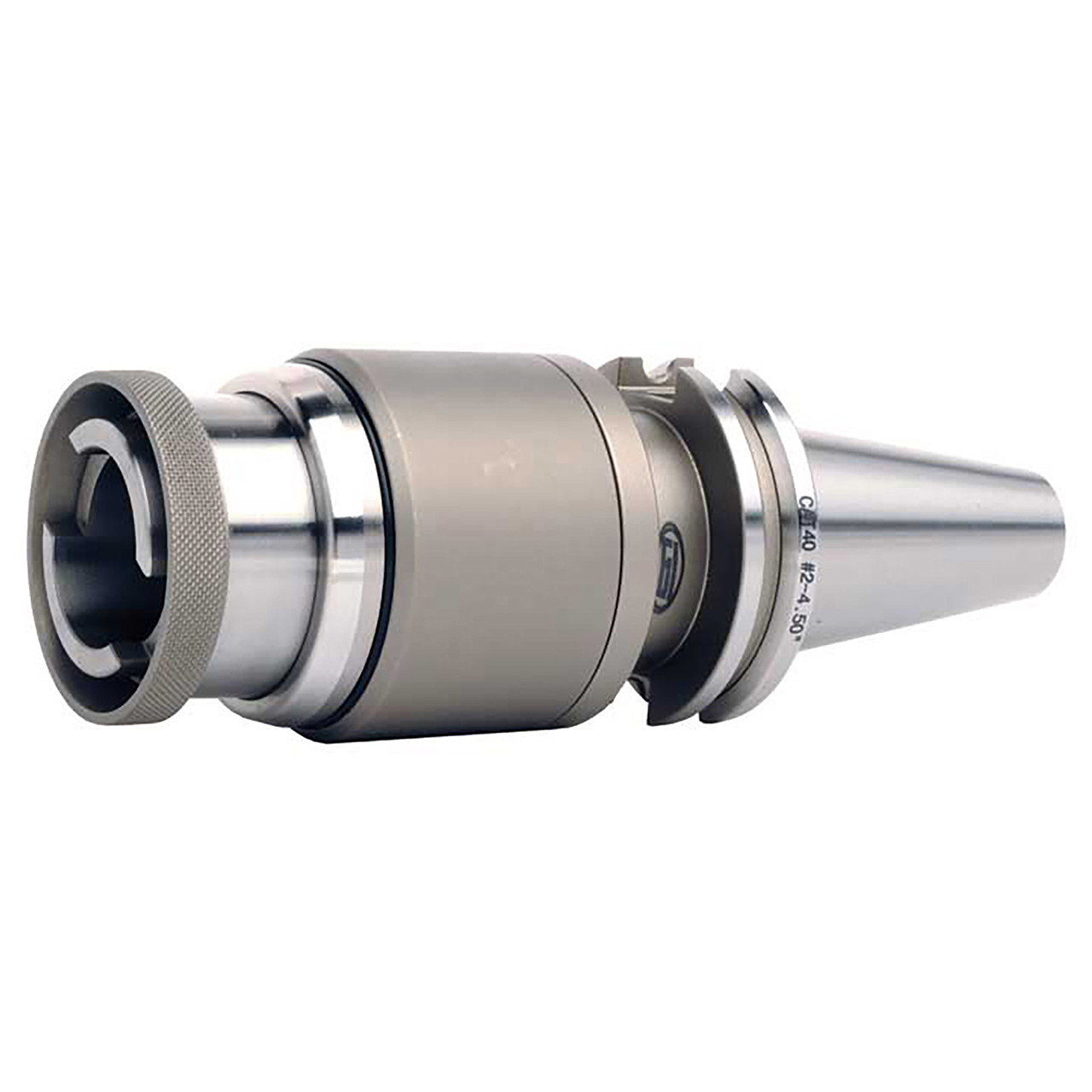

| Manufacturer Part Number | 531550 |
| Shank Type | Taper Shank |
| Taper Size | CT40 |
| Projection (Decimal Inch) | 9.19" |
| Tapping Style | Tension/Compression |
| Nose Diameter (Decimal Inch) | 2.87" |
| ANSI Tap (Inch) | 5/16-7/8" |
| System | #3 |
| Tension/Compression (Inch) | 0.98/0.59" |
| NPT (Inch) | 3/4-1" |
| Product Type | Tapping Chuck |
