Features
- DIN Coolant through the flange at no extra charge
- Run out accuracy is>5µm at 4xD of the cutting tool shank
- Each chuck comes with a collet extractor
- Complete with certificate
- CAT40 Premium balanced to 20,000 RPM
- CAT50 Premium balanced to 15,000 RPM
- 8 degree tapered collet seats deeper in the body of the holder providing increased rigidity. This results in concentricity and stronger gripping power
Product Specifications

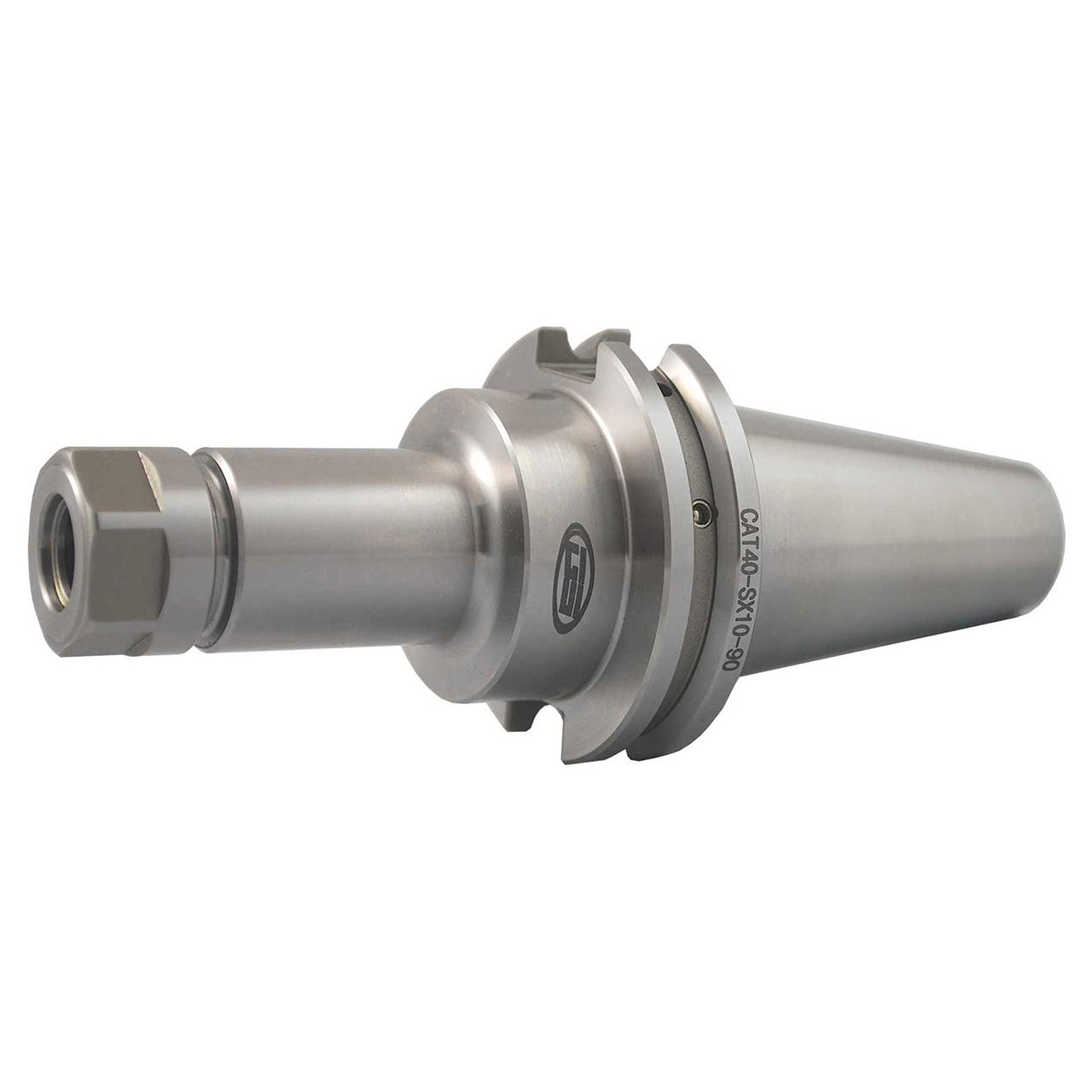

| Manufacturer Part Number | 531766 |
| Collet System | Single Angle |
| Collet Series | SA16 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Projection (Decimal Inch) | 5.91" |
| Minimum Collet Capacity (Decimal Inch) | 0.108" |
| Maximum Collet Capacity (Decimal Inch) | 0.63" |
| Balanced to (RPM) | 20000 RPM |
| Product Type | Collet Chuck |
