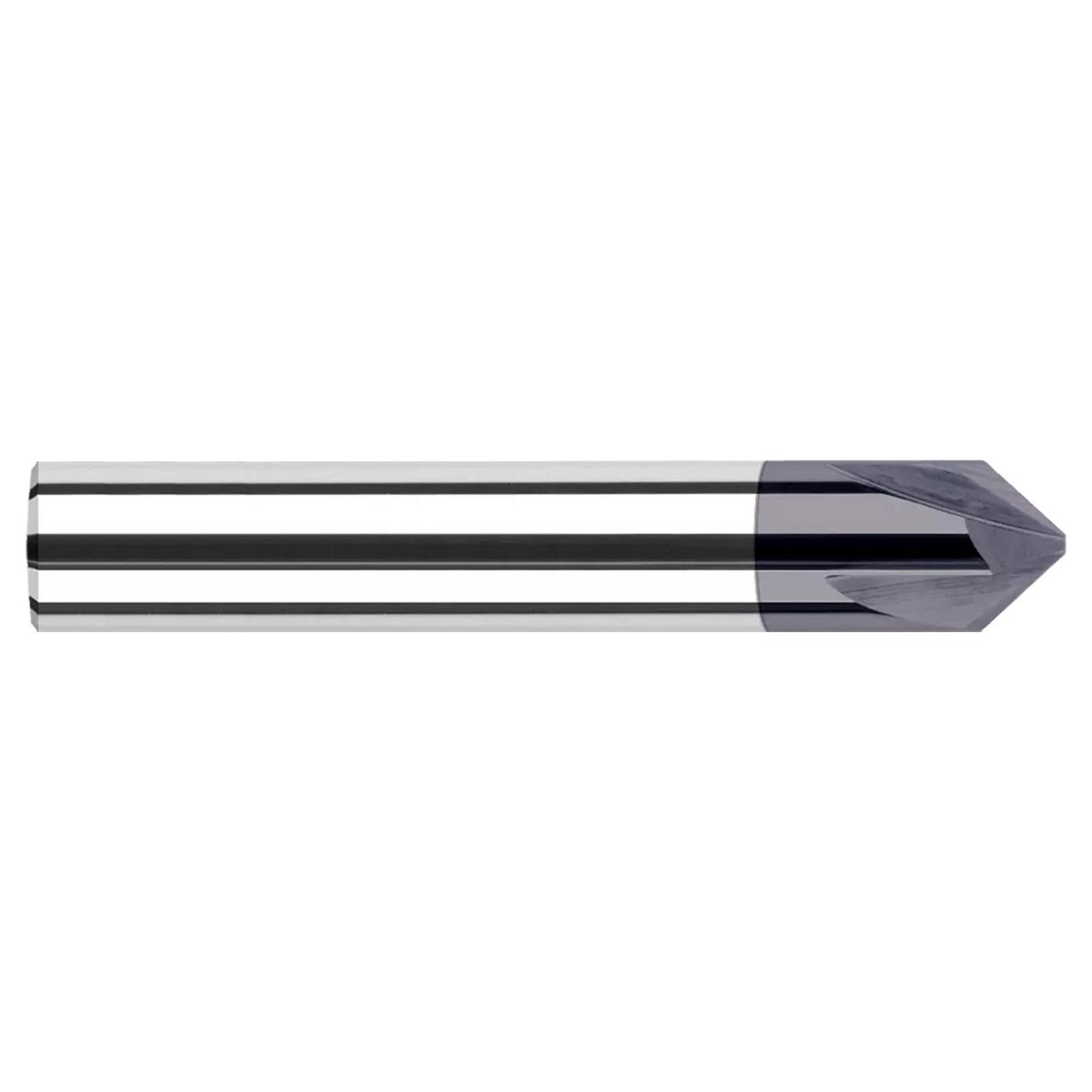

Harvey Tool 18418 | 0.3750" (3/8) Shank x 2.5000" (2-1/2) OAL x 35 Degree 3 Flutes Uncoated Carbide Chamfer Cutter

$57.80
SKU:
25211136
UPC:
Weight:
0.50 LBS
Shipping:
Calculated at Checkout

Harvey Tool's offering of pointed and flat end Chamfer Cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass.

  • Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
  • CNC ground in the USA

Product Specifications
Tool Number18418
Length of Cut (Inch)0.5000" (1/2)
Overall Length (Inch)2.5000" (2-1/2)
Tip (Inch)0.0600"
Angle per Side17.5
Included Angle35
Flutes3
TypeII
Shank Diameter (Inch)0.3750" (3/8)
CoatingUncoated
Center CuttingN
