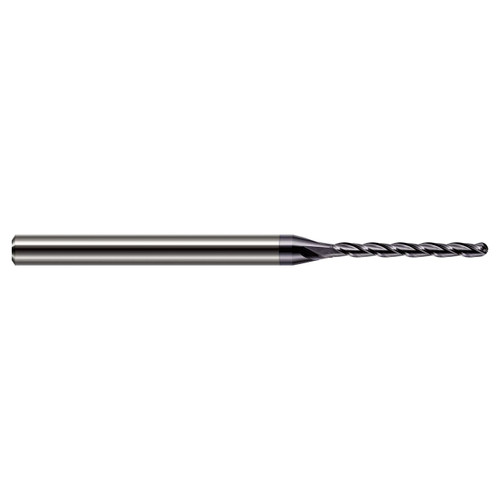

Harvey Tool 24909 | 0.1410" Cutter Diameter x 0.2109" LOC x 1.2500" (1-1/4) Taper Reach 2 Flute 4 Uncoated Miniature Ball Deburring End Mill

$85.10
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1410"
Neck Diameter (Decimal Inch):
0.1930"
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.2109"
Neck Length (Decimal Inch):
0.3515"
Overall Reach (Decimal Inch):
1.5000"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Uncoated
SKU:
25256528
UPC:
Weight:
0.08 LBS
Shipping:
Calculated at Checkout
Features
  • Designed for deep cavity profiling
  • 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
  • Length of cut = 1½ x diameter
  • Neck behind length of cut is reduced for 1x diameter
  • h6 shank tolerance for high precision tool holders
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number24909
Cutter Diameter (Inch)0.1410"
Neck Diameter (Inch)0.1930"
Minor Diameter (Inch)0.1310"
Length of Cut (Inch)0.2109"
Tapered Reach (Inch)1.2500" (1-1/4)
Overall Reach (Inch)1.5000" (1-1/2)
Overall Length (Inch)4.0000" (4)
Neck Length (Inch)0.3515"
Shank Diameter (Inch)0.2500" (1/4)
Neck Angle4 Degree
Number of Flutes2
LOC Multiple(1.5x)
CoatingUncoated
ProfileBall
