Product Specifications
| Manufacturer Part Number | 714699-C6 |
| Cutter Diameter (Decimal Inch) | 0.125" |
| Cutter Diameter (Inch) | 1/8" |
| Length of Cut (Decimal Inch) | 0.625" |
| Length of Cut (Inch) | 5/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.005" |
| Angle per Side (Degree) | 10 Degree |
| Included Angle (Degree) | 2 Degree |
| Number of Flute | 3 |
| LOC Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Metric | No |
| Coating | C6 |

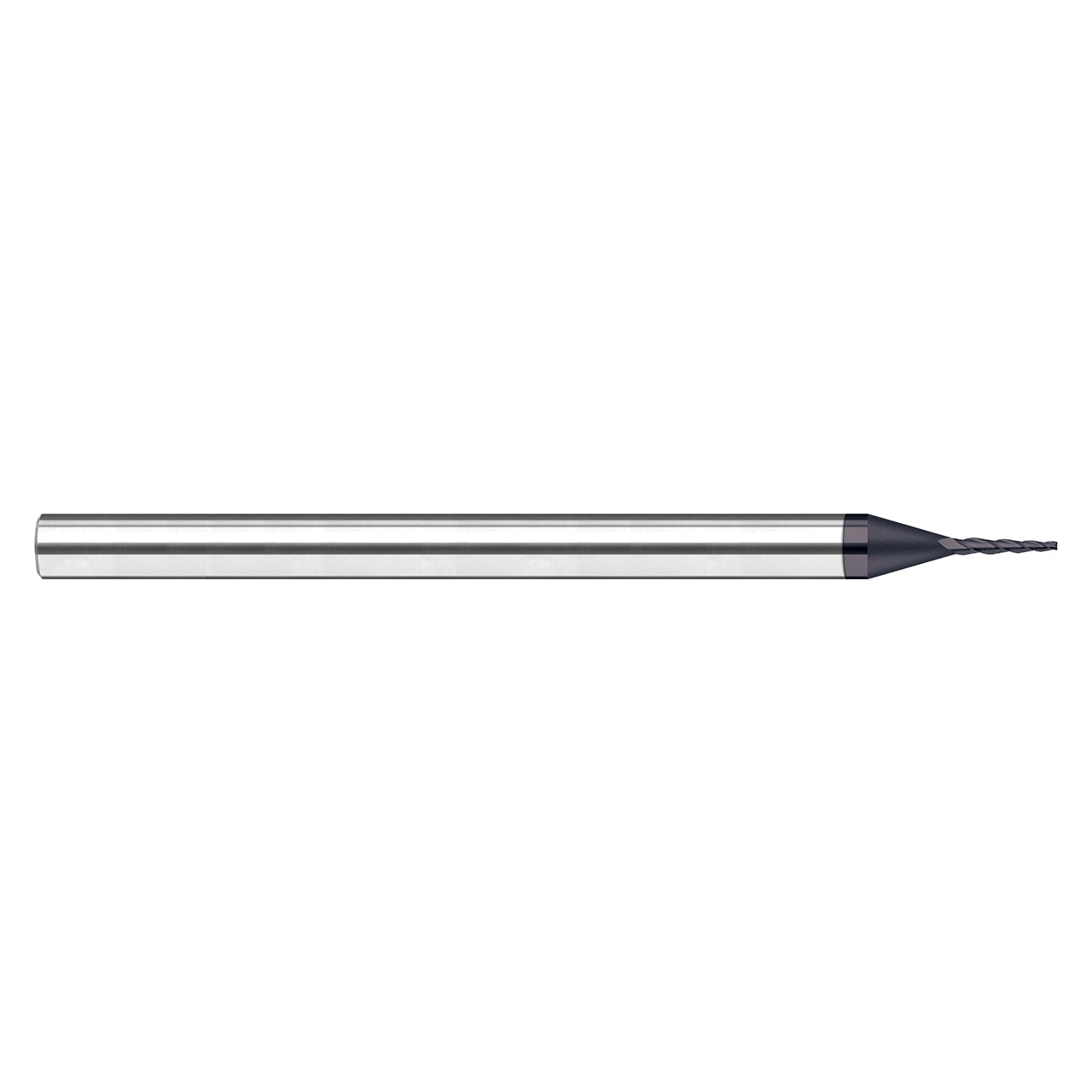

| Product Type | Tapered Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1250"
Mill Diameter (mm):
3.18mm
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0050"
Corner Radius (mm):
0.13mm
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
C6
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
