Product Specifications
Manufacturer Part Number | 722467 |
Cutting Diameter (Decimal Inch) | 0.020" |
Shank Diameter (Inch) | 1/8" |
Neck Diameter (Decimal Inch) | 0.0160" |
Length of Cut (Decimal Inch) | 0.013" |
Neck Length (Inch) | 1/32" |
Overall Length (Inch) | 1-1/2" |
Overall Reach (Decimal Inch) | 0.0440" |
Radius (Decimal Inch) | 0.0100" |
Wrap Angle (Degree) | 220 Degree |
Number of Flutes | 2 |
Coating | Uncoated |

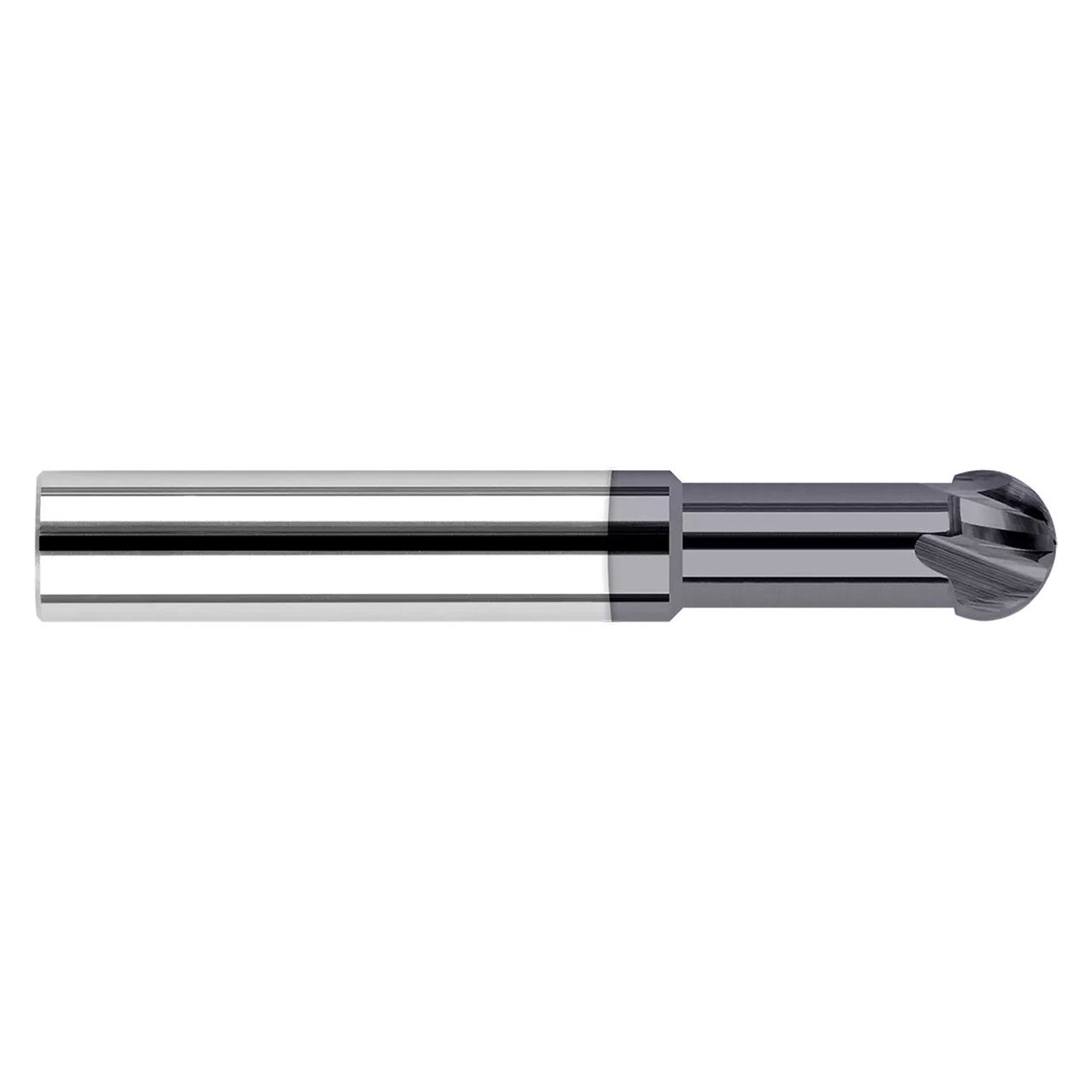

Product Type | Undercutting End Mill |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/64"
Cutter Diameter (Decimal Inch):
0.0200"
Cutter Diameter (mm):
0.51mm
Length of Cut (Inch):
1/64"
Length of Cut (Decimal Inch):
0.0130"
Length of Cut (mm):
0.33mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1300"
Shank Diameter (mm):
3.18mm
Neck Diameter (Inch):
1/62"
Neck Diameter (Decimal Inch):
0.0160"
Neck Diameter (mm):
0.41mm
Neck Length (Inch):
1/32"
Neck Length (Decimal Inch):
0.0310"
Neck Length (mm):
0.79mm
Number of Flutes:
2
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
