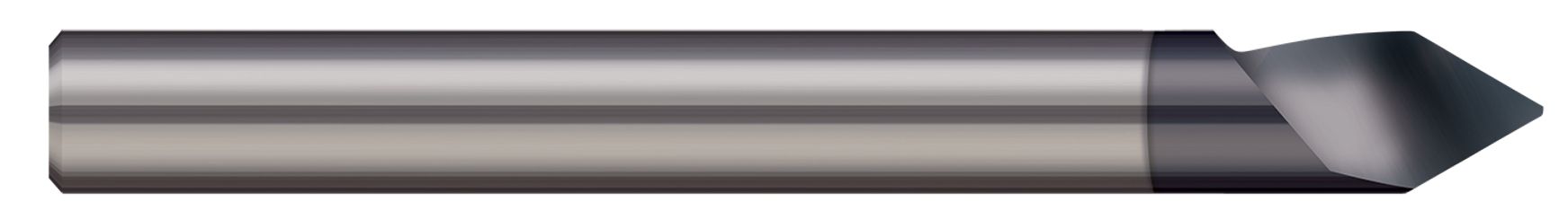

With optimized geometry for superior engraving in softer materials such as plastics and aluminum, this fully stocked Harvey Tool offering of Engraving Cutters -Tipped Off - Helical Flute features tooling that enables free cutting action, providing excellent surface finish and chip evacuation.
- Optimized geometry for superior engraving in softer materials such as plastics and aluminum
- Free cutting action provides excellent surface finish and chip evacuation
- Tipped-off end diameter for improved cutting action
- Right hand spiral, right hand cut
- Solid carbide
- CNC ground in the USA
Product Specifications
| Length of Cut (Inch) | 0.1040" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 1 |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flat on Part | 0.0050" |
| Type | II |
| Split Length (Inch) | 0.0625" (1/16) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle:
60 Degree
Number of Flutes:
1
Length of Cut (Decimal Inch):
0.1040"
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
