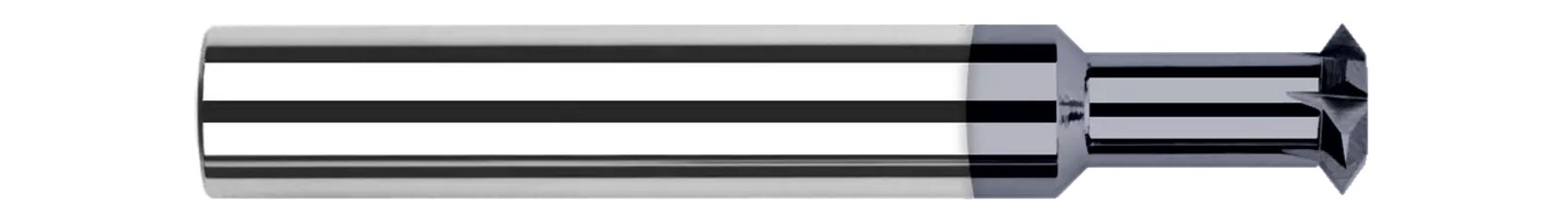

Harvey Tool 807310 | 5/32" Diameter x 5/64" Width x 3/16" Shank 90 Degree Included Angle Uncoated Carbide Pointed Double Angle Cutter

$50.20
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25174859
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations, while its 60 Degree angle allows it to be used for thread milling, as well.

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • 60 Degree angle can also be used for thread milling
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.1562" (5/32)
Neck Diameter (Inch)0.0780" (5/64)
Cutter Width (Inch)0.0780" (5/64)
Neck Length (Inch)0.3750" (3/8)
Overall Length (Inch)2.0000" (2)
Number of Flutes4
Angle per Side45
Included Angle90
TypeI
Shank Diameter (Inch)0.1875" (3/16)
Coating/FinishUncoated
