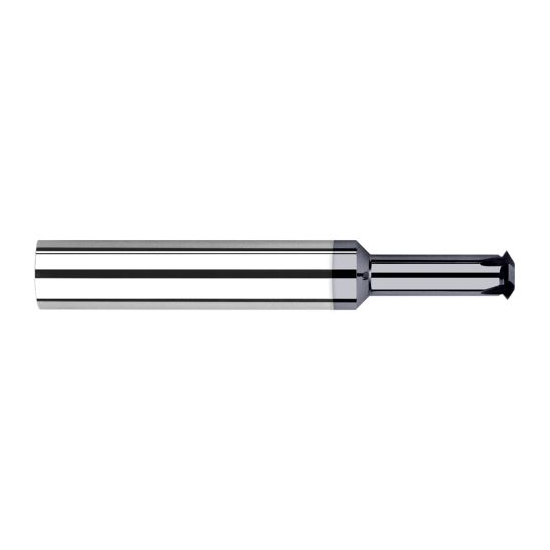

Features
- Designed for threading hardened steel 48-68Rc
- Single thread form designed, to mill common pitch sizes
- Tip of included angle ground to a flat for increased wear resistance
- Large rigid core diameter and eccentric relief for improved strength
- Mills left hand and right hand threads
- Cuts internal and external 60 Degree UN threads
- h6 shank tolerance for high precision tool holders
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Select carbide grade for improved edge retention
- CNC ground in the USA
Product Specifications
| Milling Diameter (Decimal Inch) | 0.1800" |
| Max Depth of Thread (Inch) | 5/16" |
| Max Depth of Thread (Decimal Inch) | 0.3120" |
| Number of Flutes | 5 |
| Finish/Coating | AlTiN Nano |
| Included Angle | 60 Degree |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Neck Diameter (Decimal Inch) | 0.1220" |
| Length of Cut (Decimal Inch) | 0.0360" |
| Tip Flat (Decimal Inch) | 0.0030" |
| Angle Per Side | 30 Degrees |
| Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1800"
Max Depth of Thread (Inch):
5/16"
Max Depth of Thread (Decimal Inch):
0.3120"
Number of Flutes:
5
Material:
Carbide
Finish/Coating:
AlTiN Nano
Application:
Hardened Steels
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Ships:
From Partner Facility
