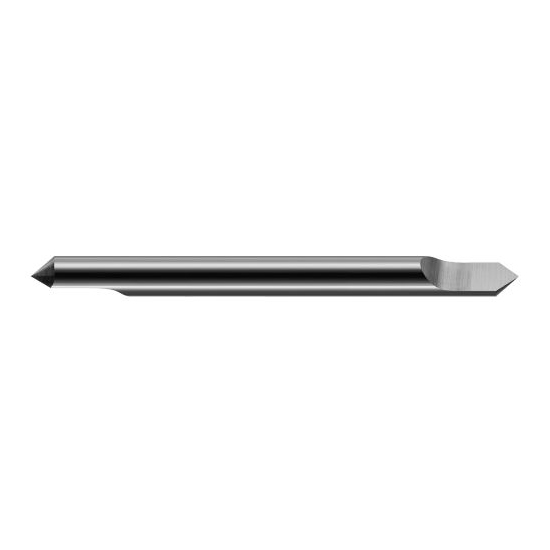

Product Specifications
| Length Of Cut (Decimal Inch) | 0.3430" |
| Length Of Cut (Inch) | 11/32" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Angle Per Side | 20 Degree |
| Included Angle | 40 Degree |
| Number of Flutes | 1 |
| Type | II |
| Split Length (Decimal Inch) | 0.3750" |
| Split Length (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | Uncoated |
| Single or Double Angle | Double |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Point Shape:
Sharp
Point Angle:
40 Degree
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Length of Cut (Inch):
11/32"
Length of Cut (Decimal Inch):
0.3430"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Finish/Coating:
Uncoated
Material:
Solid Carbide
Ships:
From Partner Facility
