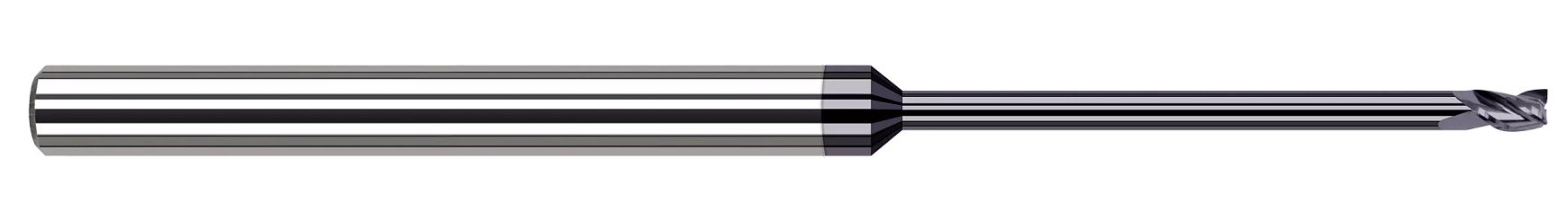

CNC ground in the USA, Harvey Tool's solid carbide Router Style Miniature End Mills are offered in 2 or 4 flute styles and feature a square profile, router style shank, and tighter overall length tolerances for quick and consistent CNC tool changes.
- Router style shank and tight overall length for quick and consistent tool changes
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1406" (9/64) |
| Neck Diameter (Inch) | 0.1360" |
| Length of Cut (Inch) | 0.2200" |
| Overall Reach (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Neck Diameter (Decimal Inch):
0.1360"
Shank Diameter (Inch):
3/16"
Length of Cut (Decimal Inch):
0.2200"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Number of Flutes:
4
Finish/Coating:
C3
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
