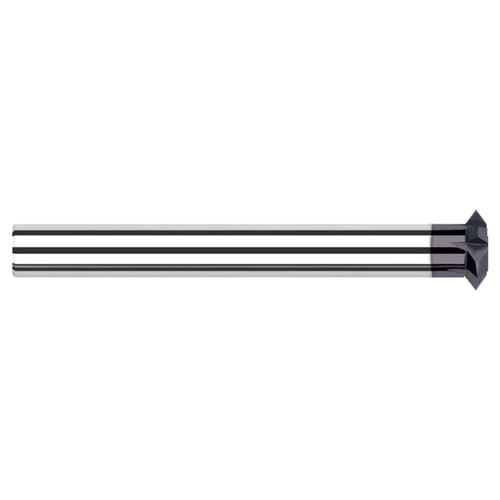

Harvey Tool 866403-C3 | 0.2500" (1/4) Diameter x 0.0720" Width x 0.1250" (1/8) Shank x 60 Degree AlTiN Coated Carbide Double Angle Cutter

$108.10
SKU:
25232723
UPC:
Weight:
0.01 LBS
Shipping:
Free Shipping

Ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part, Double Angle Shank Cutters - Pointed - Reduced Shank.

  • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
  • Reduced straight shank allows any chucking depth
  • Solid carbide head brazed onto steel shank
  • Tip of included angle ground to a point
  • CNC ground in the USA

Product Specifications
Tool Number866403-C3
Cutter Diameter (Inch)0.2500" (1/4)
Cutter Width (Inch)0.0720"
Overall Length (Inch)2.5720"
Angle per Side30
Included Angle60
Flutes6
Shank Diameter (Inch)0.1250" (1/8)
CoatingC3
