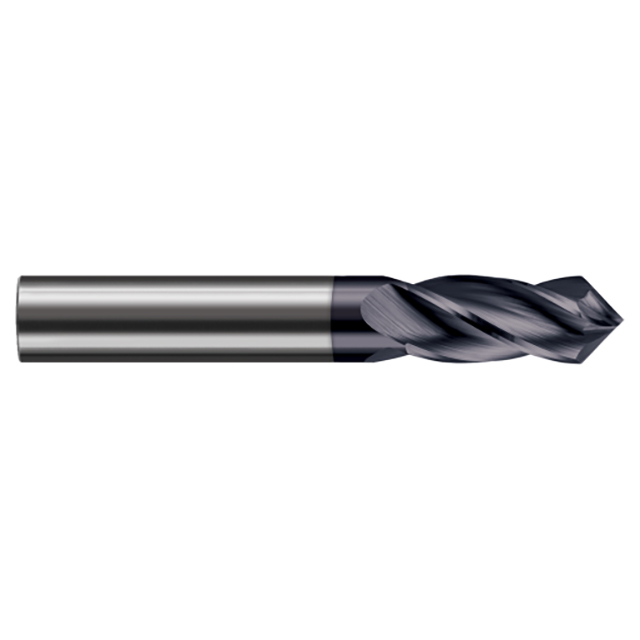

Product Specifications
| Cutter Diameter (Inch) | 5/16" |
| Cutter Diameter (Decimal Inch) | 0.3125" |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.8120" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Angle per Side | 30 Degree |
| Included Angle | 60 Degree |
| Number of Flutes | 4 |
| LOC Multiple | 3x |
| Web Thickness | 0.0100" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN Nano |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Material:
Carbide
Point Angle:
60 Degree
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8120"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Number of Flutes:
4
Finish/Coating:
AlTiN Nano
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
