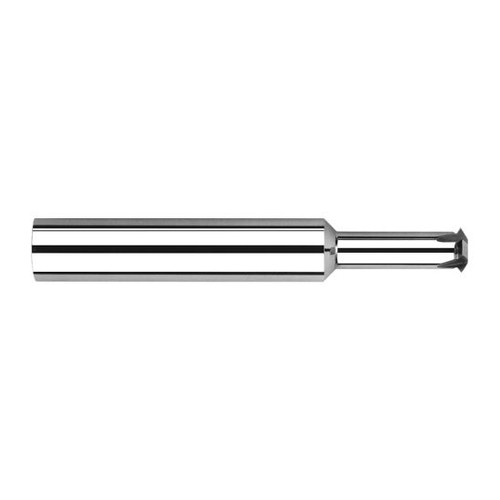

Harvey Tool 901255 | 5/16 Thread 0.2400" Diameter 4FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill

$108.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
5/16
Cutter Diameter (Decimal Inch):
0.2400"
Max Depth of Thread (Inch):
1-1/2"
Max Depth of Thread (Decimal Inch):
1.5000"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
3"
Ships:
From Partner Facility
SKU:
25120252
UPC:
Weight:
0.08 LBS
Shipping:
Free Shipping
Harvey Tool 901255 | 5/16 Thread 0.2400" Diameter 4FL 60 Degree Incuded Angle Uncoated Coated Carbide Single Profile Thread Mill
Features
  • Single thread form - can mill any pitch
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Tip of included angle ground to a point
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 5/16
Milling Diameter (Decimal Inch) 0.2400"
Max Depth of Thread (Inch) 1-1/2"
Max Depth of Thread (Decimal Inch) 1.5000"
Number of Flutes 4
Finish/Coating Uncoated
Included Angle 60 Degree
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Neck Diameter (Decimal Inch) 0.1600"
Length of Cut (Decimal Inch) 0.0460"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
