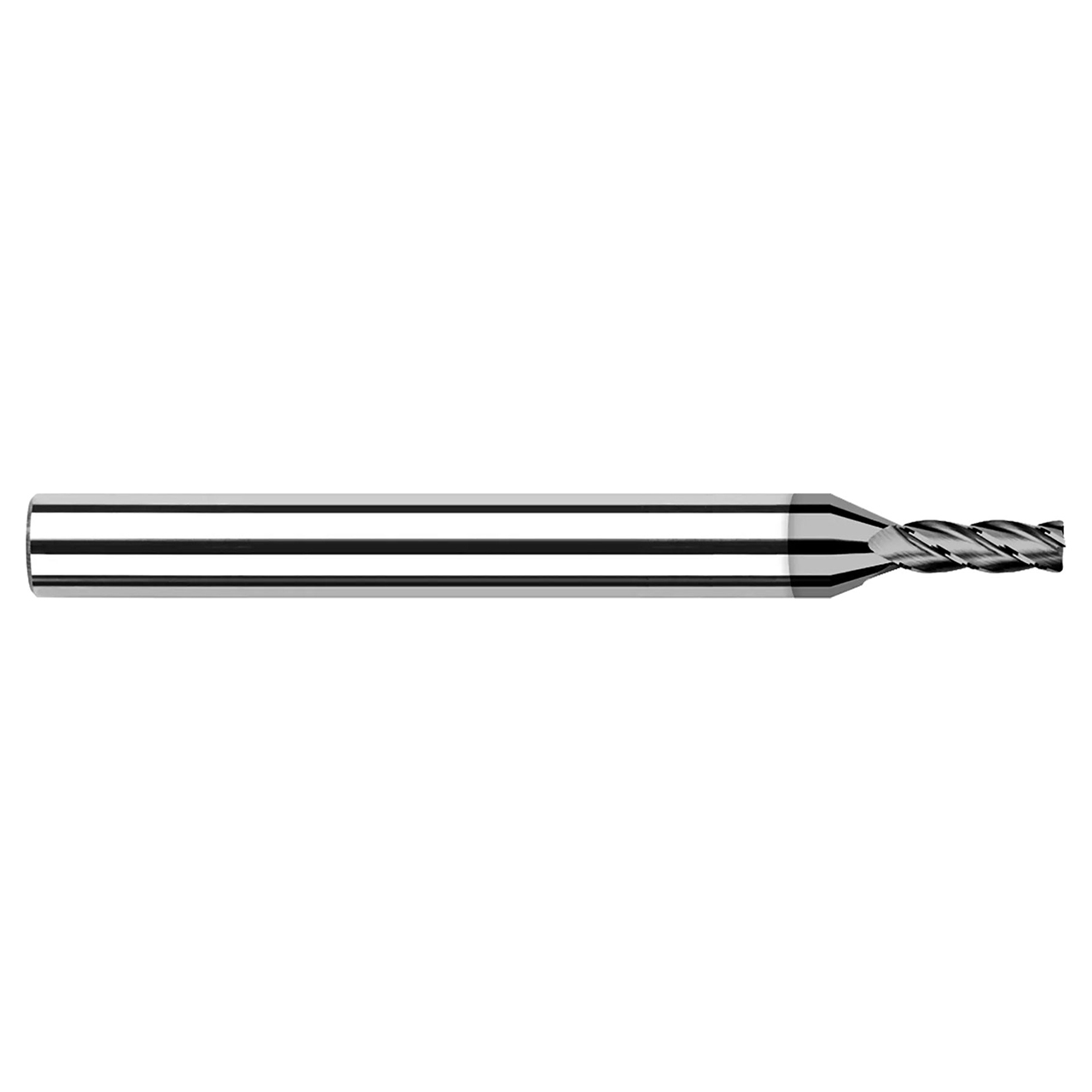

Harvey Tool's Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius features a true crystalline CVD diamond on solid carbide substrate.
- Ideal for machining graphite and composites, green carbide, and green ceramics
- True crystalline CVD diamond on solid carbide substrate
- h6 shank tolerance for high precision tool holders
- Maximum abrasion resistance increases tool life
- CNC ground in the USA
- Center cutting
- 4 flutes
Product Specifications
| Tool Number | 906324 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Corner Radius (Inch) | 0.0300" |
| Flutes | 4 |
| LOC Multiple | 3x |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating | C5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Corner Radius (Decimal Inch):
0.0300"
Number of Flutes:
4
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
C5
