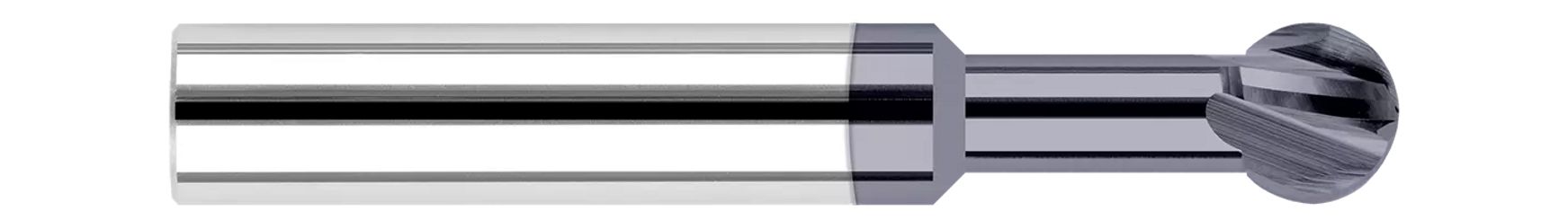

The 270 Degree spherical ball on this solid carbide Undercutting End Mill is ideal for deburring complex shapes, and multi-axis machining. Deburr right in your CNC machine with these high-precision burs held to end mill tolerances, and stop scrapping expensive parts due to handheld operator errors.
- 270 Degree spherical ball is ideal for deburring complex shapes and multi-axis machining
- Deburr in your CNC machine with these high-precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle times
- Achieve better finish than with milling-type cutters
- Double cut style flute pattern
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
Cutter Diameter (Inch) | 0.5000" (1/2) |
Neck Diameter (Inch) | 0.3230" |
Length of Cut (Inch) | 0.4260" |
Neck Length (Inch) | 1.2500" (1-1/4) |
Overall Reach (Inch) | 1.6770" |
Overall Length (Inch) | 3.0000" (3) |
Radius | 0.2500" (1/4) |
Number of Flutes | 4 |
Wrap Angle | 270 |
Shank Diameter (Inch) | 0.5000" (1/2) |
Coating/Finish | C3 |
