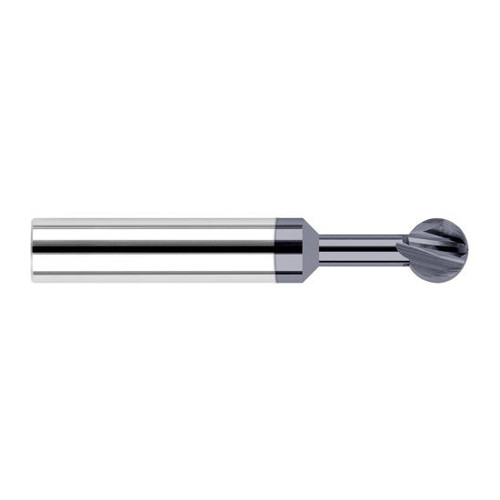

Harvey Tool 940112-C3 | 300 Degree Sperical Ball 3/16" Diameter x 3/16" Shank x 0.1740" LOC x 2" OAL 4FL AlTiN Coated Carbide Undercutting End Mill

$82.80
Ships:
From Partner Facility
Brand:
Harvey Tool
Wrap Angle:
300 Degree
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Length of Cut (Decimal Inch):
0.1740"
Neck Length (Decimal Inch):
0.6250"
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Finish/Coating:
AlTiN
Material:
Carbide
Ships:
From Partner Facility
SKU:
25121144
UPC:
Weight:
0.02 LBS
Shipping:
Free Shipping
Product Specifications
Mill Diameter (Decimal Inch) 0.1875"
Mill Diameter (Inch) 3/16"
Neck Diameter (Decimal Inch) 0.0820"
Length Of Cut (Decimal Inch) 0.1740"
Neck Length (Decimal Inch) 0.6250"
Neck Length (Inch) 5/8"
Overall Reach (Decimal Inch) 0.7990"
Overall Length (Decimal Inch) 2.0000"
Overall Length (Inch) 2"
Radius (Decimal Inch) 0.0938"
Wrap Angle 300 Degree
Number of Flutes 4
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Coating AlTiN
