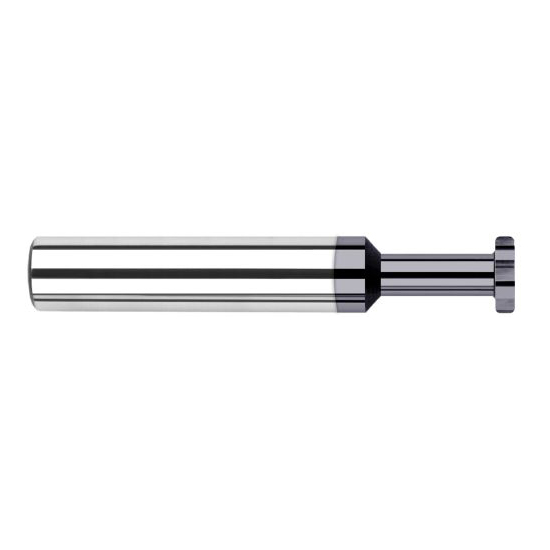

Harvey Tool 970060-C3 | 3/8" Diameter x 1/8" Width x 3/8" Shank 0.0150" Corner Radus AlTiN Coated Solid Carbide Straight Tooth Keyseat Cutter

$109.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Milling Diameter (Inch):
3/8"
Milling Diameter (Decimal Inch):
0.3750"
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1250"
Corner Radius:
0.0150"
Neck Length (Inch):
9/16"
Neck Length (Decimal Inch):
0.5620"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Tooth Configuration:
Straight
Ships:
From Partner Facility
SKU:
25110826
UPC:
Weight:
0.12 LBS
Shipping:
Free Shipping
Product Specifications
Mill Diameter (Decimal Inch) 0.3750"
Mill Diameter (Inch) 3/8"
Neck Diameter (Decimal Inch) 0.1870"
Neck Diameter (Inch) 3/16"
Cutter Width (Decimal Inch) 0.1250"
Cutter Width (Inch) 1/8"
Neck Length (Decimal Inch) 0.5620"
Neck Length (Inch) 9/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Radial Depth Of Cut (Decimal Inch) 0.0840"
Corner Radius (Decimal Inch) 0.0150"
Corner Radius (Inch) 1/64"
Number of Flutes 8
Reach Multiple (1.5x)
Type I
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (Inch) 3/8"
Coating AlTiN
Top Corner Radius 0.015
