Product Specifications
| Head Diameter (Decimal Inch) | 0.3750" |
| Head Diameter (Inch) | 3/8" |
| Neck Diameter (Decimal Inch) | 0.1610" |
| Neck Length (Decimal Inch) | 0.5000" |
| Neck Length (Inch) | 1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Radius (Decimal Inch) | 0.0930" |
| Radius (Inch) | 3/32" |
| Number of Flutes | 3 |
| Radius Center (Decimal Inch) | 0.1860" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Metric | No |
| Coating | Uncoated |
| Pilot Flare | 5 |
| Shoulder Flare | 5 |
| Single or Double Angle | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

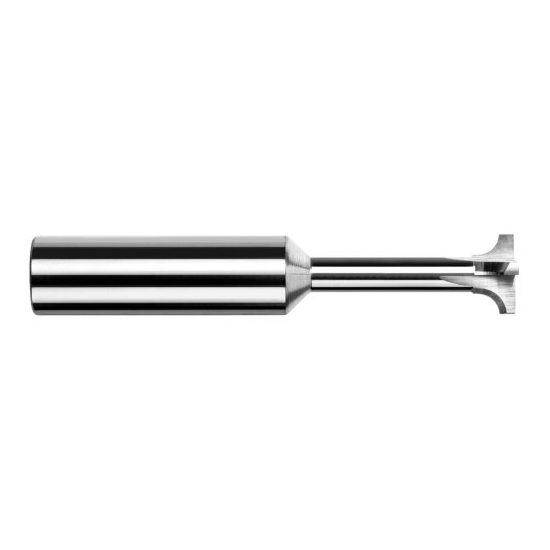

Brand:
Harvey Tool
Material:
Solid Carbide
Radius (Inch):
3/32"
Radius (Decimal Inch):
0.0930"
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Number of Flutes:
3
Finish/Coating:
Uncoated
Single or Double End:
Single
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
3/8"
Ships:
From Partner Facility
