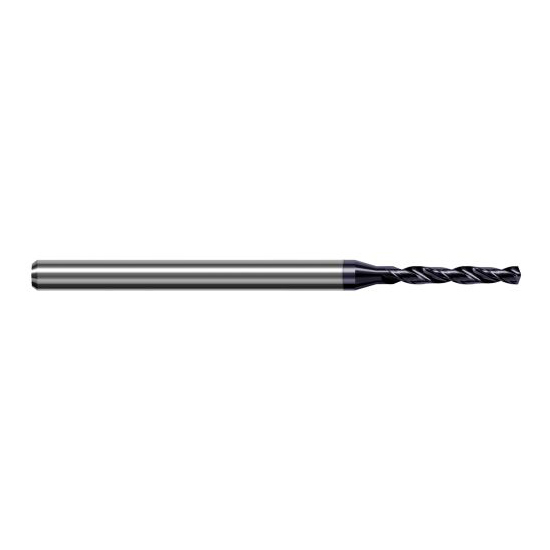

Harvey Tool BVT2343-C3 | 5.953mm Diameter x 6.000mm Shank x 100.000mm OAL 140 Degree Drill Point AlTiN Coated Solid Carbide Micro Drill Bit

$68.40
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (mm):
5.953mm
Drill Point Angle:
140 Degree
Flute Length (mm):
40.000mm
Shank Diameter (mm):
6.000mm
Shank Type:
Straight
Overall Length (mm):
100.000mm
Finish/Coating:
AlTiN
Through Coolant:
No
Material:
Solid Carbide
Application:
Prehardened Steels
Ships:
From Partner Facility
SKU:
10103136
UPC:
Weight:
0.07 LBS
Shipping:
Calculated at Checkout
Harvey Tool BVT2343-C3 | 5.953mm Diameter x 6.000mm Shank x 100.000mm OAL 140 Degree Drill Point AlTiN Coated Solid Carbide Micro Drill Bit
Features
  • 140 Degree point angle
  • Specialized flute shape for improved chip evacuation and maximum rigidity
  • AlTiN coated for improved lubricity and heat resistance
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Drill Diameter (mm) 5.953mm
Point Angle 140 Degree
Flute Length (mm) 40.000mm
Shank Diameter (mm) 6.000mm
Overall Length (mm) 100.000mm
Finish/Coating AlTiN
Through Coolant No
Material Solid Carbide
Number of Flutes 2
LOC Multiple (5x)
Single or Double Single
End Type Drill Point

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Harvey Tool
Size (mm):
5.953mm
Drill Point Angle:
140 Degree
Flute Length (mm):
40.000mm
Shank Diameter (mm):
6.000mm
Shank Type:
Straight
Overall Length (mm):
100.000mm
Finish/Coating:
AlTiN
Through Coolant:
No
Material:
Solid Carbide
Application:
Prehardened Steels
Ships:
From Partner Facility
