Product Specifications

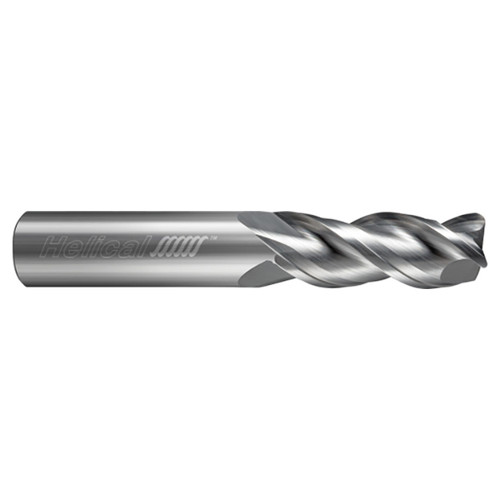

| Tool Description | H40ALV-M-30500-R.060 |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (Decimal Inch) | 1.6250" |
| Material | Solid Carbide |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Corner Radius (Decimal Inch) | 0.0600" |
| LOC Multiple | 3x |
| Web Thickness (Decimal Inch) | 0.0100" |
| Shank Length (Inch) | 2-3/8" |
| Shank Length (Decimal Inch) | 2.3750" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Number of Flutes:
3
Corner Radius (Decimal Inch):
0.0600"
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Application:
Aluminum
Single or Double End:
Single
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Ships:
From Partner Facility
