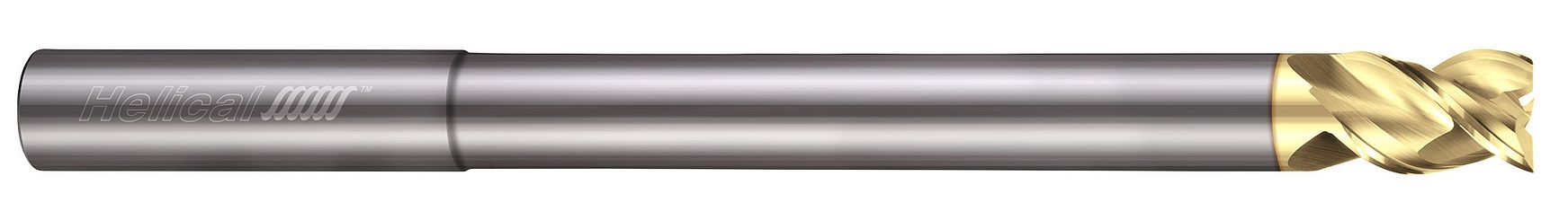

The H45AL-RN-3's reduced neck, combined with its high helix design, provides maximum strength in long reach applications where finish is a priority, and the Zplus coating provides additional tool life and increased chip evacuation.
- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- High helix for increased part finish and shearing action
- Cylindrically ground to maintain edge strength
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1875" (3/16) |
| Neck Diameter (Inch) | 0.1780" |
| Length of Cut (Inch) | 0.2188" (7/32) |
| Overall Reach (Inch) | 1.3120" (1-5/16) |
| Overall Length (Inch) | 3" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
3
Length of Cut (Inch):
7/32"
Length of Cut (Decimal Inch):
0.2188"
Length of Cut (mm):
5.56mm
Finish/Coating:
UN
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Center Cutting:
Yes
