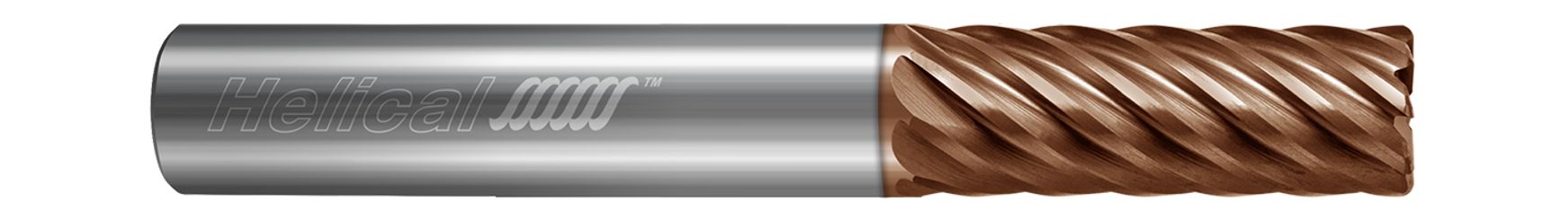

This 8 flute, Corner Radius End Mill is specially enginered for optimal performace in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys, and features a variable pitch design for improved part finish.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys
- 8 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.1200" |
| No of Flutes | 8 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | TPLUS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
8
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1200"
Corner Radius (mm):
3.05mm
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.6mm
