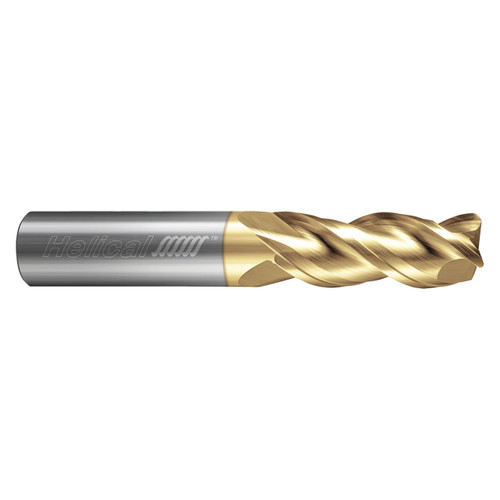

Helical Solutions 86987 | H40ALV-LX-30250-R.010 0.2500" Diameter x 0.2500" Shank x 1.5000" LOC x 3.0000" OAL x 0.0100" Radius 3 Flute Zplus Coated Carbide Corner Radius End Mill

$50.90
SKU:
25215398
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

A reduced neck and unique design that requires less torque and horsepower make this durable tool the perfect choice for roughing in aluminum, especially in long reach and deep cavity applications where chip evacuation is a common challenge.

Features:
  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Engineered with high helix and chipbreaker geometry for optimal chip evacuation and a semi-finished surface
  • Unique tool design requires less torque and horsepower
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Tool Number86987
Cutter Diameter (Inch)0.2500"
Length of Cut (Inch)1.5000"
Overall Length (Inch)3.0000"
Corner Radius (Inch)0.0100"
No of Flutes3
LOC Multiple6x
Shank Diameter (Inch)0.2500"
CoatingZplus
