Features:

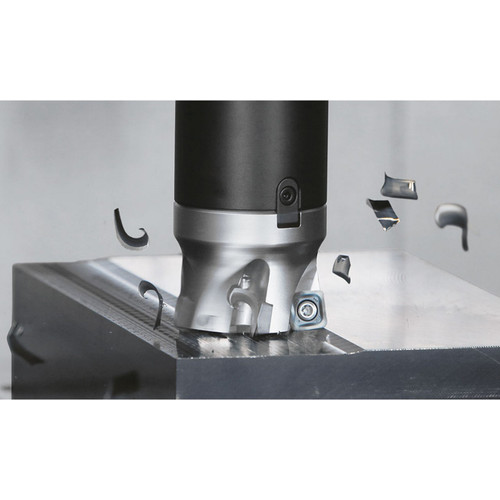

- 10 Degree Lead angle high feed face mill
- Application: facing, shouldering, slotting, ramping, helical milling, plunging
- Clamp screw insert holding design
- Compatible with (4) SOMT14 inserts
- Reduced chattering with convex cutting edge design controls initial impact when entering the workpiece
Product Specifications
| EDP Number | 8606874 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787" |
| Cutting Diameter (Decimal Inch) | 1.0941 - 2.0000" |
| Cutting Diameter (mm) | 27.79 - 50.80mm |
| Cutting Diameter Minimum (Decimal Inch) | 1.0941" |
| Cutting Diameter Minimum (mm) | 27.79mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.0000" |
| Cutting Diameter Maximum (mm) | 50.80mm |
| Cutting Diameter Maximum (mm) | 0.7500" |
| Connection Bore Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.7500" |
| Contact Surface Diameter Machine Side (mm) | 44.45mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
2 "
Cutting Diameter (Decimal Inch):
2.0000"
Cutting Diameter (mm):
50.80mm
Maximum Depth of Cut (Inch):
5/64"
Maximum Depth of Cut (Decimal Inch):
0.0787"
Maximum Depth of Cut (mm):
2mm
Arbor Hole Diameter (Inch):
3/4"
Arbor Hole Diameter (Decimal Inch):
0.7500"
Arbor Hole Diameter (mm):
19.05mm
Series:
MFHR;Cutter Style=MFH"
Number of Cutter Inserts:
4
