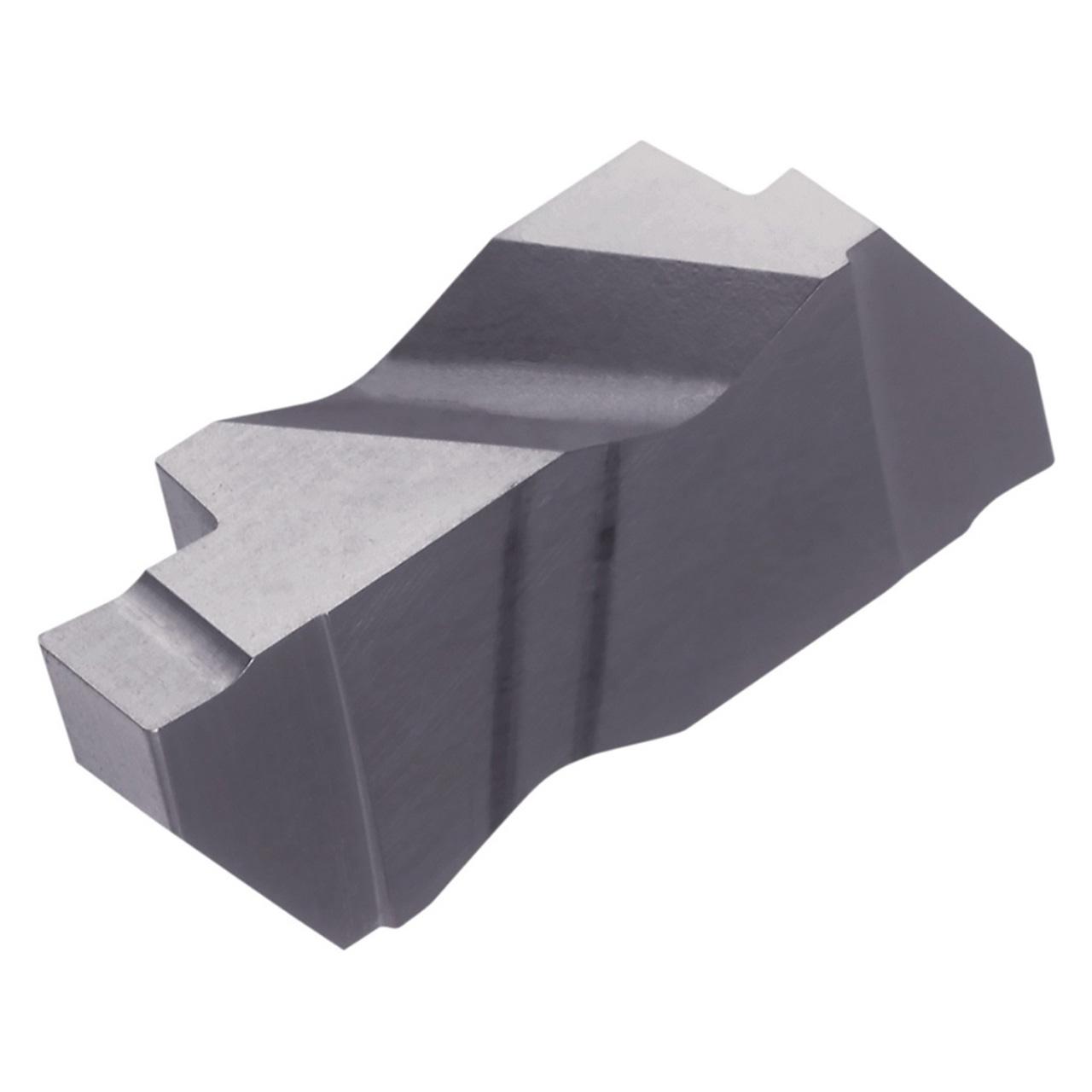

Kyocera Precision Tools 8849602 | KCGP4250R PR1215 0.2500" Cutting width x 1.2717" Insert Length PVD Coated Carbide Grooving Insert

$30.08
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
4250
Material:
Carbide;Cutting Width (Decimal Inch)=0.2500"""
Cutting Width (mm):
6.35mm
Maximum Depth of Cut (Decimal Inch):
0.2500"
Maximum Depth of Cut (mm):
6.35mm
Manufacturer's Grade:
PR1215
Finish/Coating:
PVD
SKU:
23221991
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

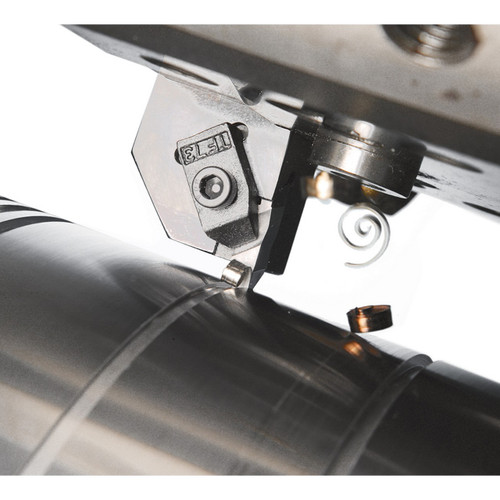

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting

Product Specifications
Tool Number8849602
Max Depth of Cut (Decimal Inch)0.2500"
Max Depth of Cut (mm)6.35mm
Cutting Width (Decimal Inch)0.2500"
Cutting Width (mm)6.35mm
Cutting Width Minimum (Decimal Inch)0.2500"
Cutting Width Minimum (mm)6.35mm
Cutting Width Maximum (Decimal Inch)0.2500"
Cutting Width Maximum (mm)6.35mm
Insert Length (Decimal Inch)1.2717"
Insert Length (mm)32.30mm
Corner Radius (Inch)0.018"
Corner Radius (mm)0.45mm
Thickness (Inch)0.453"
Thickness (mm)11.50mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessPVD
Cutting RangeFinishing
HandRight Hand
Insert Holding MethodClamp
Insert GradePR1215
Insert Size4250
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
