Features:

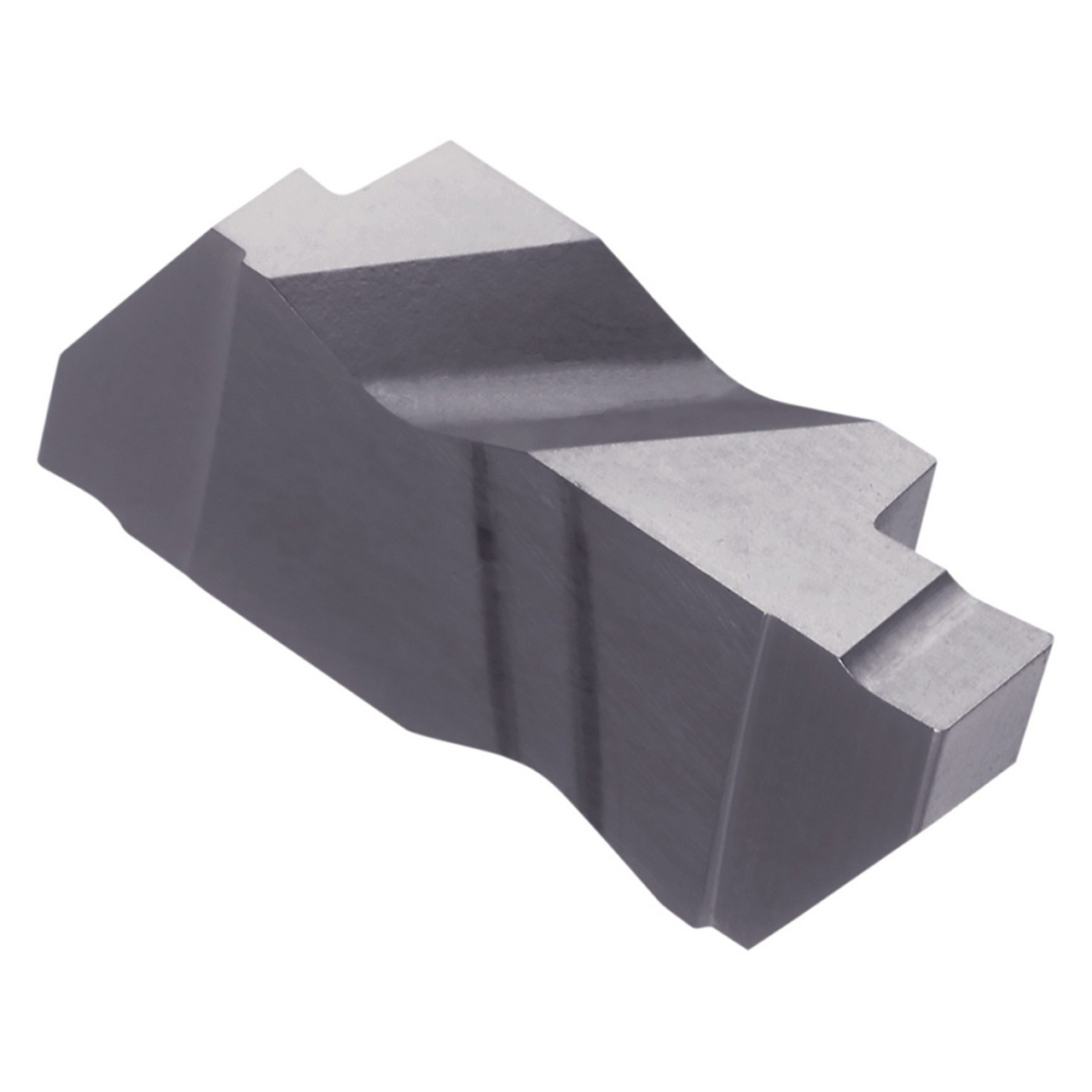

- Insert for external grooving, internal large diameter shallow grooving
- 2 Cutting edges
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
Product Specifications
| Tool Number | 8850668 |
| Max Depth of Cut (Decimal Inch) | 0.1496" |
| Max Depth of Cut (mm) | 3.80mm |
| Cutting Width (Decimal Inch) | 0.1252" |
| Cutting Width (mm) | 3.18mm |
| Cutting Width Minimum (Decimal Inch) | 0.1252" |
| Cutting Width Minimum (mm) | 3.18mm |
| Cutting Width Maximum (Decimal Inch) | 0.1252" |
| Cutting Width Maximum (mm) | 3.18mm |
| Insert Length (Decimal Inch) | 1.2717" |
| Insert Length (mm) | 32.30mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.453" |
| Thickness (mm) | 11.50mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR1215 |
| Insert Size | 4125 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
4125
Material:
Carbide;Cutting Width (Decimal Inch)=0.1252"""
Cutting Width (mm):
3.18mm
Maximum Depth of Cut (Decimal Inch):
0.1496"
Maximum Depth of Cut (mm):
3.80mm
Manufacturer's Grade:
PR1215
Finish/Coating:
PVD
