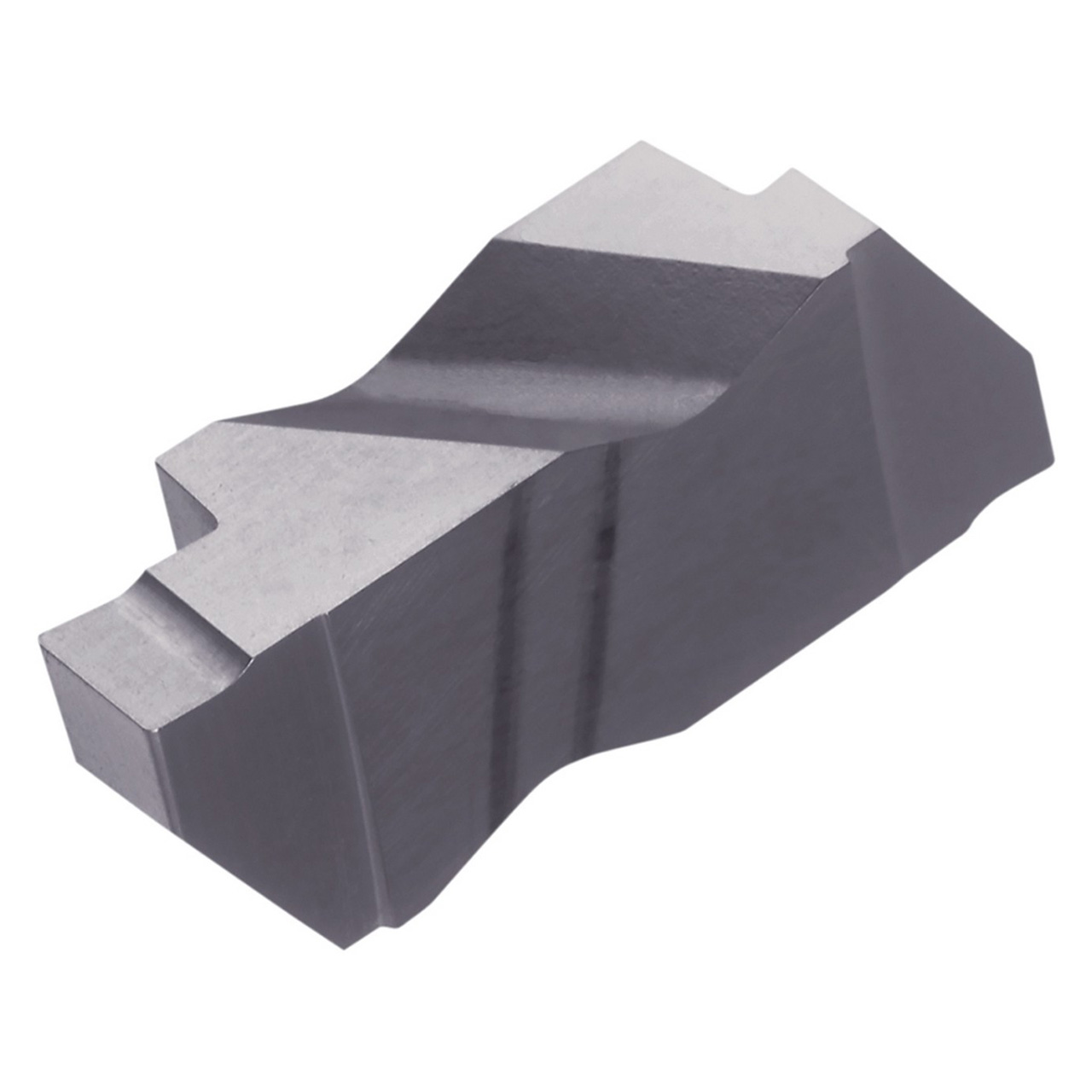

Kyocera Precision Tools 8868191 | KCGP3078R PR1625 0.0780" Cutting width x 0.8098" Insert Length PVD Coated Carbide Grooving Insert

$18.24
Brand:
Kyocera Precision Tools
Insert Style:
KCGP
Insert Size:
3078
Material:
Carbide;Cutting Width (Decimal Inch)=0.0780"""
Cutting Width (mm):
1.98mm
Maximum Depth of Cut (Decimal Inch):
0.0941"
Maximum Depth of Cut (mm):
2.39mm
Manufacturer's Grade:
PR1625
Finish/Coating:
PVD
SKU:
23222306
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, internal large diameter shallow grooving
  • 2 Cutting edges
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate

Product Specifications
Tool Number8868191
Max Depth of Cut (Decimal Inch)0.0941"
Max Depth of Cut (mm)2.39mm
Cutting Width (Decimal Inch)0.0780"
Cutting Width (mm)1.98mm
Cutting Width Minimum (Decimal Inch)0.0780"
Cutting Width Minimum (mm)1.98mm
Cutting Width Maximum (Decimal Inch)0.0780"
Cutting Width Maximum (mm)1.98mm
Insert Length (Decimal Inch)0.8098"
Insert Length (mm)20.57mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.344"
Thickness (mm)8.74mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessPVD
Cutting RangeFinishing Medium
HandRight Hand
Insert Holding MethodClamp
Insert GradePR1625
Insert Size3078
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
