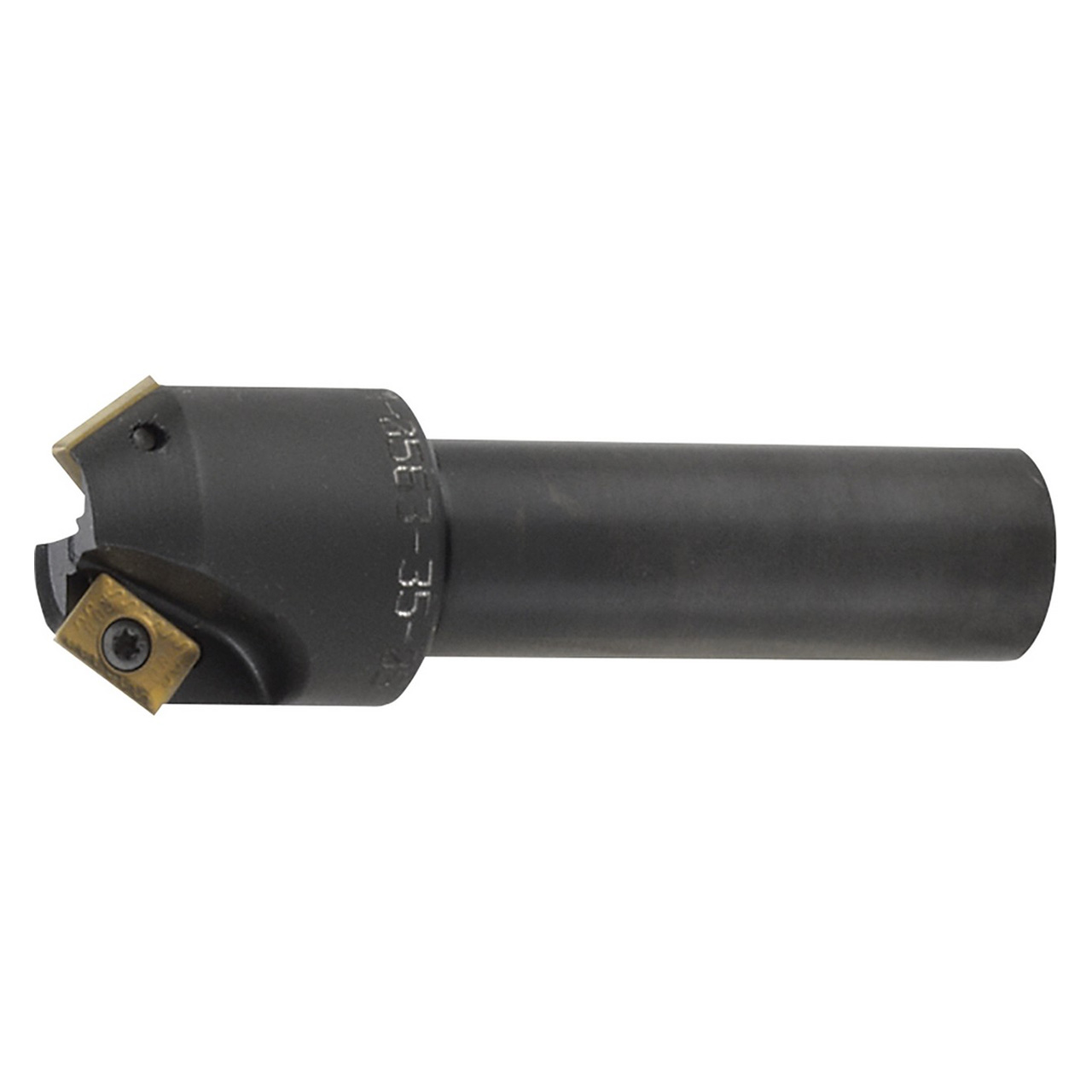

Features:
- For facing, chamfering, countersinking applications
- Compatible with (2) XPMT15T3 style inserts
Product Specifications
| EDP Number | OTM86119 |
| Maximum Depth of Cut (Decimal Inch) | 0.5860" |
| Maximum Depth of Cut (mm) | 7.62mm |
| Cutting Width (Decimal Inch) | 0.0520" |
| Cutting Width (mm) | 1.32mm |
| Cutting Width Minimum (Decimal Inch) | 0.0520" |
| Cutting Width Minimum (mm) | 1.32mm |
| Cutting Width Maximum (Decimal Inch) | 0.0520" |
| Cutting Width Maximum (mm) | 1.32mm |
| Cutting Diameter (Decimal Inch) | 1.1039 - 1.1039" |
| Cutting Diameter (mm) | 28.04 - 28.04mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.1039" |
| Cutting Diameter Maximum (mm) | 28.04mm |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Tool Entering Angle ( Degree) | 5 Degree |
| Application | Chamfering | Countersinking | Facing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
