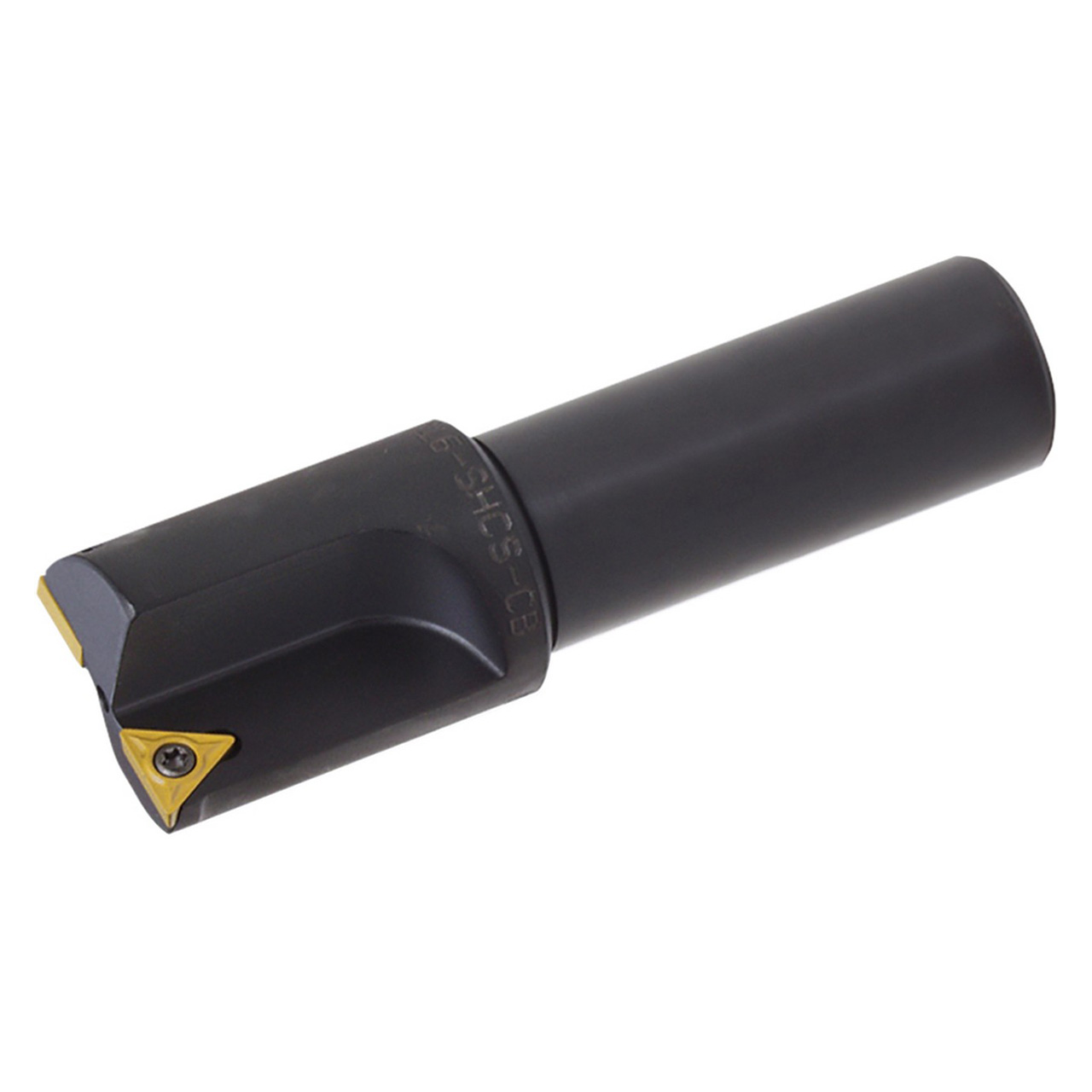

Features:
- Rigid toolholder design for stable counterboring applications
- Counterbore for M8 socket head cap screws
- Compatible with TCMT 18151HP, TCMT 18151HQ inserts
Product Specifications
| EDP Number | OTM86438 |
| Maximum Depth of Cut (mm) | 16.26mm |
| Cutting Diameter (Decimal Inch) | 0.5579" |
| Cutting Diameter (mm) | 14.17mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5579" |
| Cutting Diameter Minimum (mm) | 14.17mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.5579" |
| Cutting Diameter Maximum (mm) | 14.17mm |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Application | Counterboring |
| Hand | Neutral |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 1 |
| Number of Inserts | 1 |
| Shank Type | Standard Length |
| SHCS Size | M8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Number of Counterbore Inserts:
1
Minimum Cutting Diameter (Inch):
9/16"
Minimum Cutting Diameter (Decimal Inch):
0.5579"
Minimum Cutting Diameter (mm):
14.17mm
