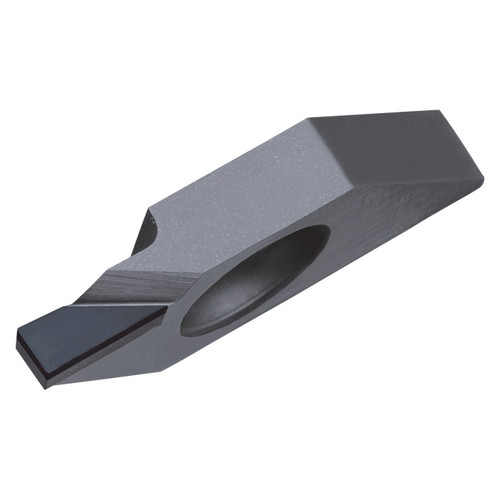

Features:
- Insert for traversing, grooving
- 1 Cutting edge
- Super Micro-Grain PCD features Cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
- Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
Product Specifications
| Tool Number | TBR16046 |
| Max Depth of Cut (Decimal Inch) | 0.3150" |
| Max Depth of Cut (mm) | 8.00mm |
| Cutting Width (Decimal Inch) | 0.0984" |
| Cutting Width (mm) | 2.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0984" |
| Cutting Width Minimum (mm) | 2.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0984" |
| Cutting Width Maximum (mm) | 2.50mm |
| Corner Radius (Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Thickness (Inch) | 0.374" |
| Thickness (mm) | 9.50mm |
| Application | Small Parts Machining | Traversing |
| Chipbreaker | AS |
| Coating Process | Uncoated |
| Cutting Range | Finishing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | KPD001 |
| Insert Size | 16 |
| Material | PCD |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TKF
Insert Size:
16
Material:
PCD;Cutting Width (Decimal Inch)=0.0984"""
Cutting Width (mm):
2.50mm
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
Manufacturer's Grade:
KPD001
Finish/Coating:
Uncoated
