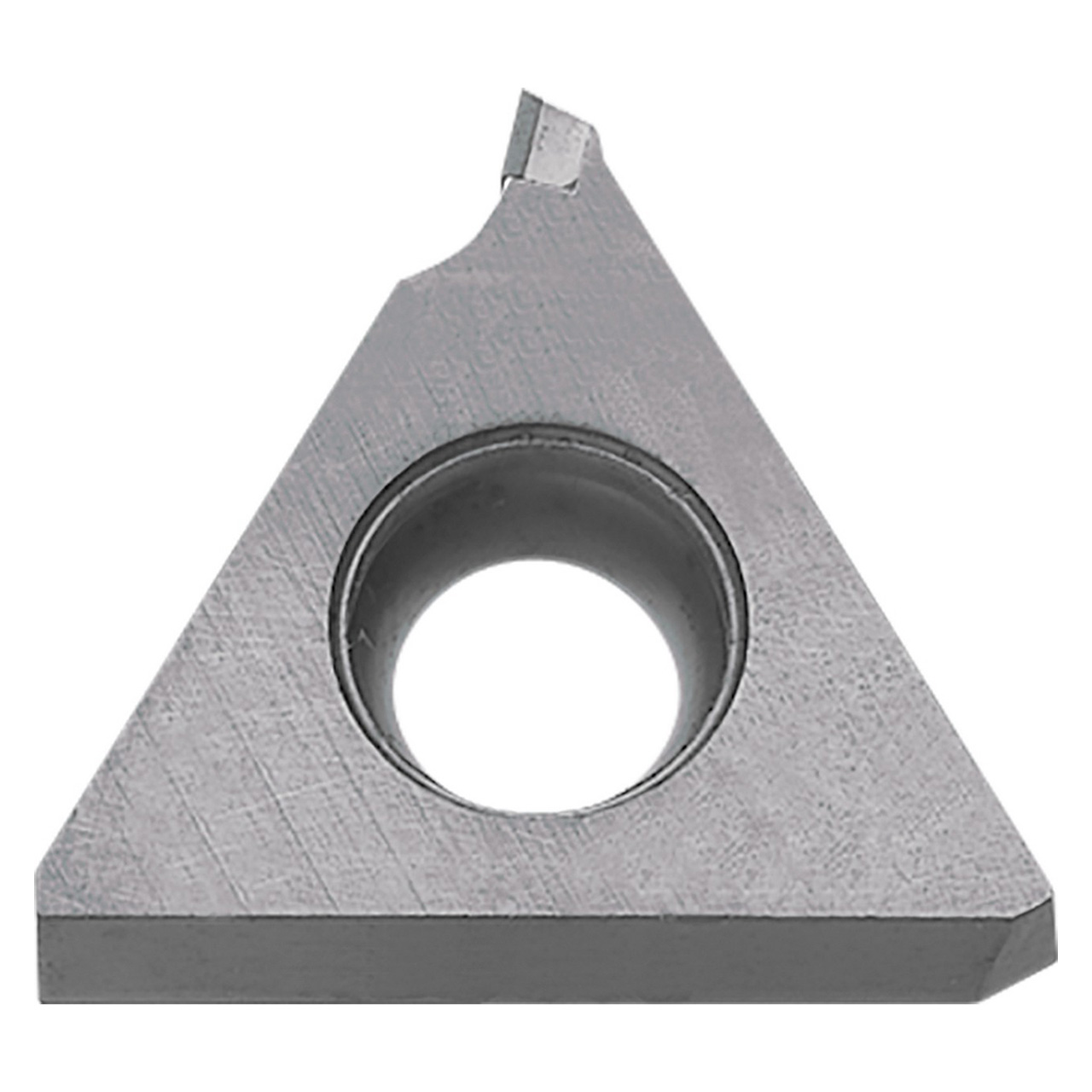

Kyocera Precision Tools TBR21221 | GBA43L200010 KPD001 0.0787" Cutting Width x 3/16" Thickness Uncoated PCD Grooving Insert

$169.69
Brand:
Kyocera Precision Tools
Insert Style:
GBA
Insert Size:
43
Material:
PCD;Cutting Width (Decimal Inch)=0.0787"""
Cutting Width (mm):
2.00mm
Maximum Depth of Cut (Decimal Inch):
0.1378"
Maximum Depth of Cut (mm):
3.50mm
Manufacturer's Grade:
KPD001
Finish/Coating:
Uncoated
SKU:
23225299
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Insert for external grooving, internal grooving
  • 1-Edge
  • 1 Cutting edge
  • Super Micro-Grain PCD features Cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
  • Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics

Product Specifications
Tool NumberTBR21221
Max Depth of Cut (Decimal Inch)0.1378"
Max Depth of Cut (mm)3.50mm
Cutting Width (Decimal Inch)0.0787"
Cutting Width (mm)2.00mm
Cutting Width Minimum (Decimal Inch)0.0787"
Cutting Width Minimum (mm)2.00mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Inscribed Circle (Inch)1/2"
Inscribed Circle (mm)12.70mm
Corner Radius (Inch)0.004"
Corner Radius (mm)0.10mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationExternal Grooving | Internal Grooving
Coating ProcessUncoated
Cutting RangeFinishing
HandLeft Hand
Insert Holding MethodScrew or Clamp
Insert GradeKPD001
Insert Size43
MaterialPCD
Number of Cutting Edges1
Primary Workpiece MaterialNon-Ferrous Materials (N)
Usage ClassificationContinuous
