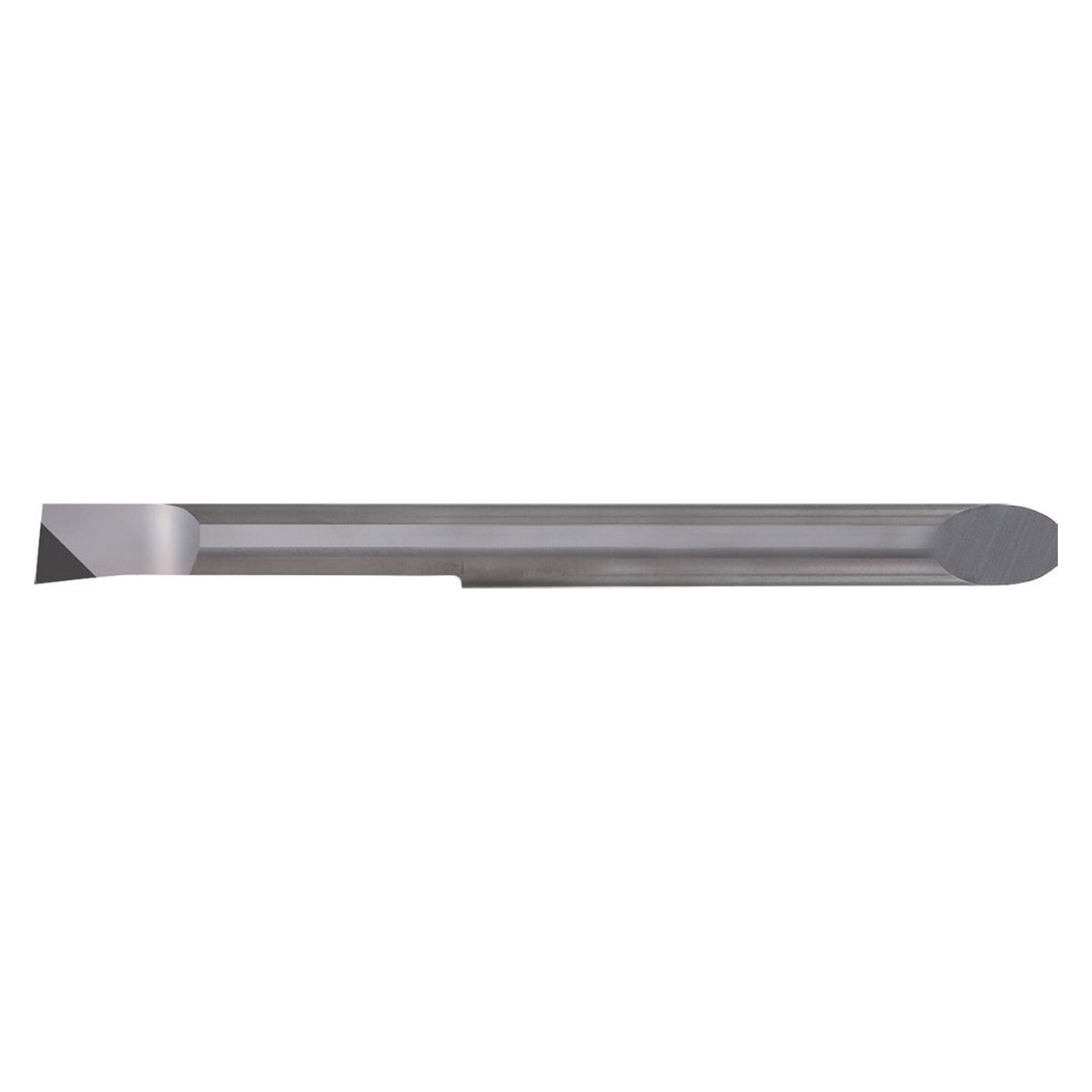

Features:
- Adjustable overhang length (EZ Adjust structure)
- Minimized deviation of the cutting diameter
- Various EZ bar sizes and styles for a wide range of small internal machining applications
- Without chipbreaker for non-ferrous machining applications
- Compatible with EZH070 style sleeves
Product Specifications
| EDP Number | TBR30407 |
| Maximum Depth of Cut (mm) | 10.00mm |
| Connection Diameter (Decimal Inch) | 0.2756" |
| Connection Diameter (mm) | 7.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.2756" |
| Minimum Bore Diameter (mm) | 7.00mm |
| Shank Height (Decimal Inch) | 0.2598" |
| Shank Height (mm) | 6.60mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Usable Length (Decimal Inch) | 1.3780" |
| Usable Length (mm) | 35.00mm |
| Corner Radius (Decimal Inch) | 0.001" |
| Corner Radius (mm) | 0.035mm |
| Application | Micro Boring |
| Coating Process | Uncoated |
| Hand | Right Hand |
| Insert Grade | KPD001 |
| Insert Holding Method | Screw |
| Material | PCD |
| Primary Workpiece Material | Non-Ferrous Materials (N) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
EZB;Minimum Bore Diameter (Decimal Inch)=0.2756"""
Minimum Bore Diameter (mm):
7.00mm
Maximum Bore Depth (Decimal Inch):
1.3780"
Maximum Bore Depth (mm):
35.00mm
Shank Diameter (Decimal Inch):
0.2756"
Shank Diameter (mm):
7.00mm
