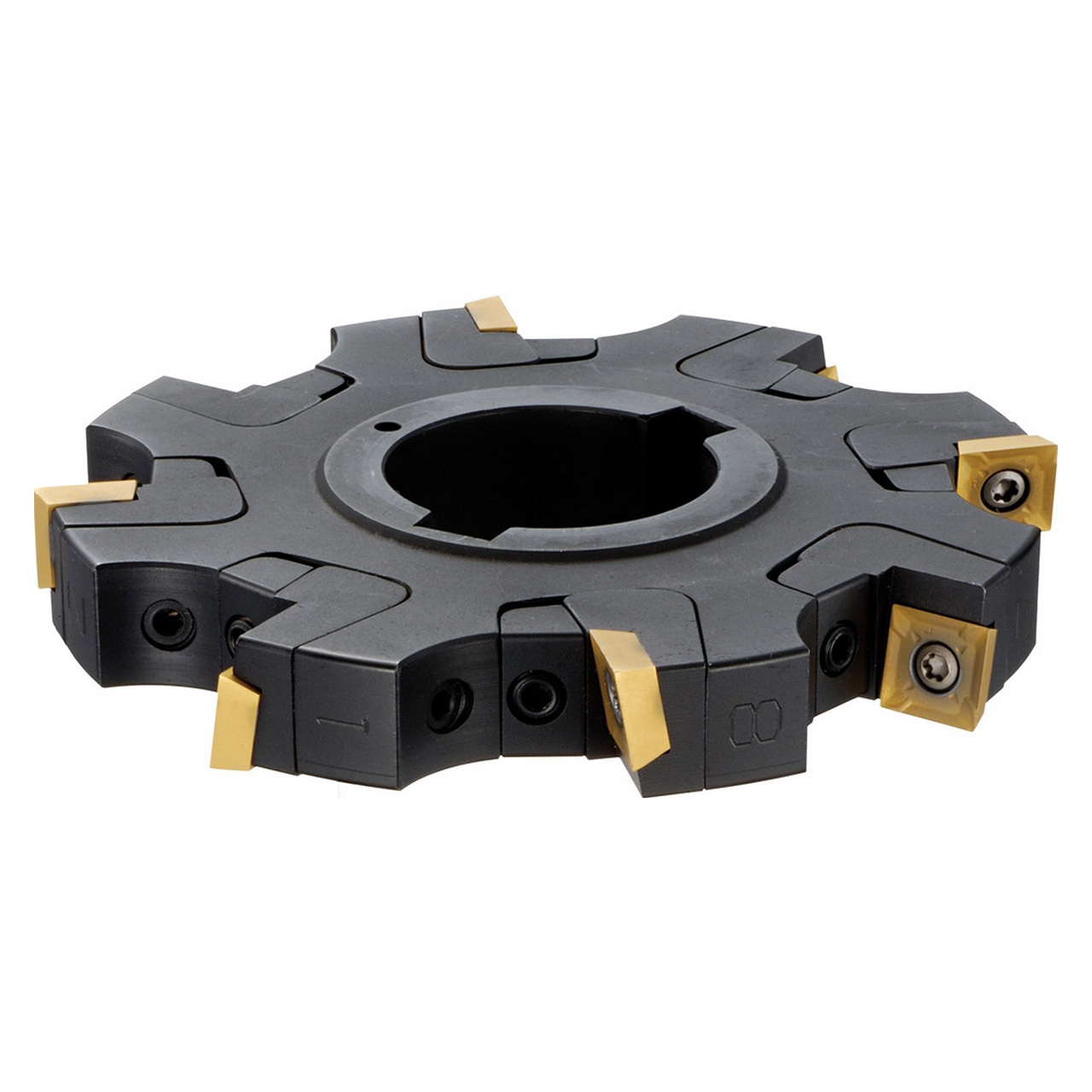

Features:
- Lay-down type inserts/fully adjustable slot width
- Smooth slotting width adjustment is possible due to unique cam style adjustment mechanism
- Four-sided inserts are cost-effective
- Wide range of corner radii
- Numerous insert geometries and grades, are for various types of workpiece machining
Product Specifications
| EDP Number | THC10621 |
| Maximum Depth of Cut (Decimal Inch) | 0.4610" |
| Max Depth of Cut (Decimal Inch) | 1.3307" |
| Max Depth of Cut (mm) | 33.80mm |
| Cutting Diameter (Decimal Inch) | 5.0000" |
| Cutting Diameter (mm) | 127.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 5.0000" |
| Cutting Diameter Minimum (mm) | 127.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 5.0000" |
| Cutting Diameter Maximum (mm) | 127.00mm |
| Cutting Diameter Maximum (mm) | 1.5000" |
| Connection Bore Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.2500" |
| Contact Surface Diameter Machine Side (mm) | 57.15mm |
| Application | Shouldering |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Maximum Depth of Cut (Inch):
1-21/64"
Maximum Depth of Cut (Decimal Inch):
1.3307"
Maximum Depth of Cut (mm):
33.80mm
Cutter Diameter (Inch):
5"
Cutter Diameter (Decimal Inch):
5.0000"
Cutter Diameter (mm):
127.00mm
Hole Diameter (Inch):
1-1/2"
Hole Diameter (Decimal Inch):
1.5000"
Hole Diameter (mm):
38.10mm
Toolholder Style:
MSTC
Series:
MSTC
