Features:

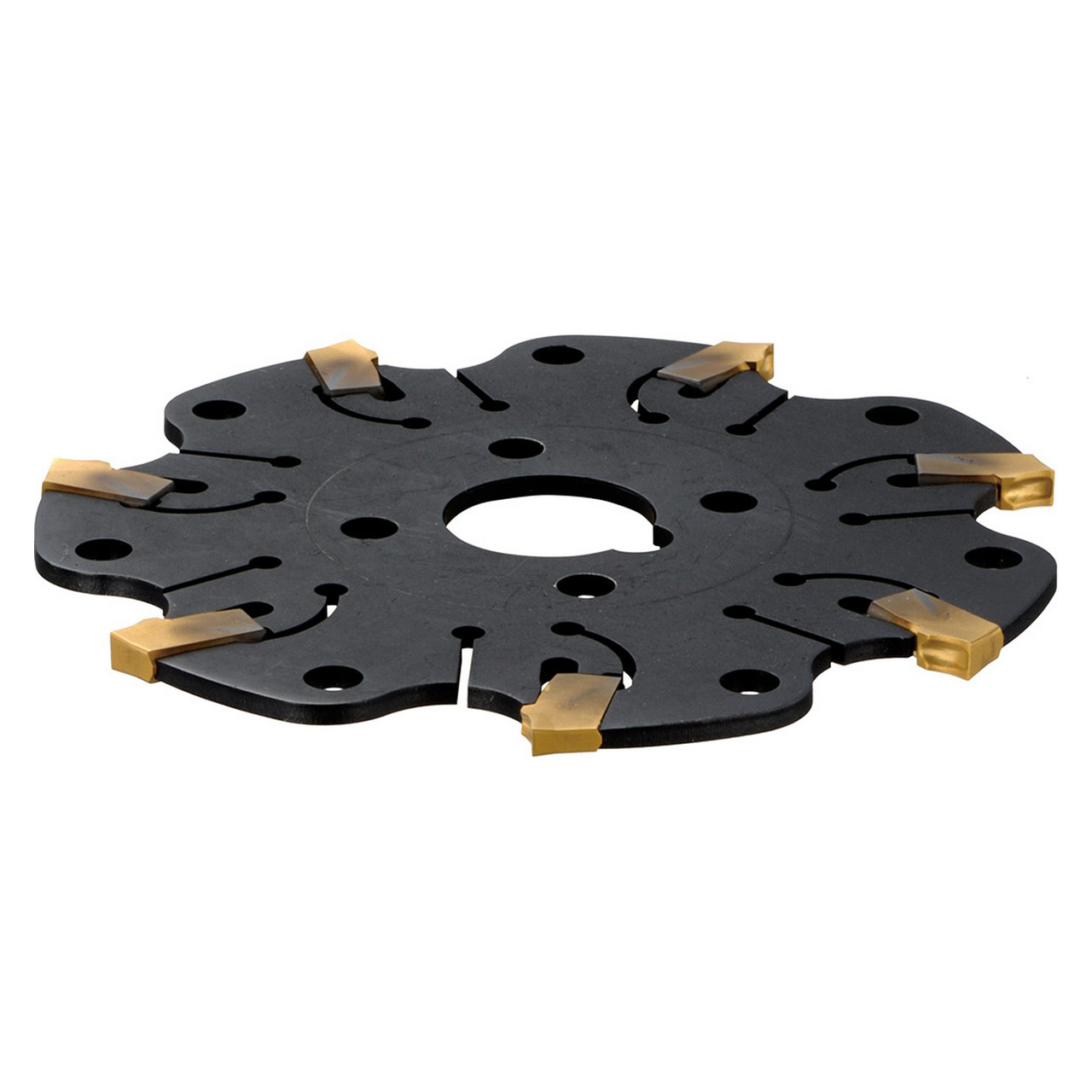

- MSTA slot mills have simple self-clamping system to allow for easy attachment by just installing the insert
- Owing to the highly rigid clamping system - with an end-stopper, the cutter enables high operability and stable slotting by maintaining an accurate edge position.
- High replacement precision due to the clamping system with two prisms.
- The replacement of inserts is easy and quick by using special wrench.
Product Specifications
| EDP Number | THC10958 |
| Shank Width (Decimal Inch) | 0.7874" |
| Max Depth of Cut (Decimal Inch) | 0.5906" |
| Max Depth of Cut (mm) | 15.00mm |
| Cutting Width (Decimal Inch) | 0.0866" |
| Cutting Width (mm) | 2.20mm |
| Cutting Width Minimum (Decimal Inch) | 0.0866" |
| Cutting Width Minimum (mm) | 2.20mm |
| Cutting Width Maximum (Decimal Inch) | 0.0866" |
| Cutting Width Maximum (mm) | 2.20mm |
| Cutting Diameter (Decimal Inch) | 2.4803" |
| Cutting Diameter (mm) | 63.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.4803" |
| Cutting Diameter Minimum (mm) | 63.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.4803" |
| Cutting Diameter Maximum (mm) | 63.00mm |
| Cutting Diameter Maximum (mm) | 0.6299" |
| Connection Bore Diameter (mm) | 16.00mm |
| Application | Cut-Off | Slotting |
| Hand | Neutral |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
3/32"
Cutting Width (Decimal Inch):
0.0866"
Cutting Width (mm):
2.20mm
Maximum Depth of Cut (Inch):
19/32"
Maximum Depth of Cut (Decimal Inch):
0.5906"
Maximum Depth of Cut (mm):
15.00mm
Cutter Diameter (Inch):
2-3/64"
Cutter Diameter (Decimal Inch):
2.4803"
Cutter Diameter (mm):
63.00mm
Hole Diameter (Inch):
5/8"
Hole Diameter (Decimal Inch):
0.6299"
Hole Diameter (mm):
16.00mm
Toolholder Style:
MSTA
Series:
MSTA
